MX-6 LS V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>

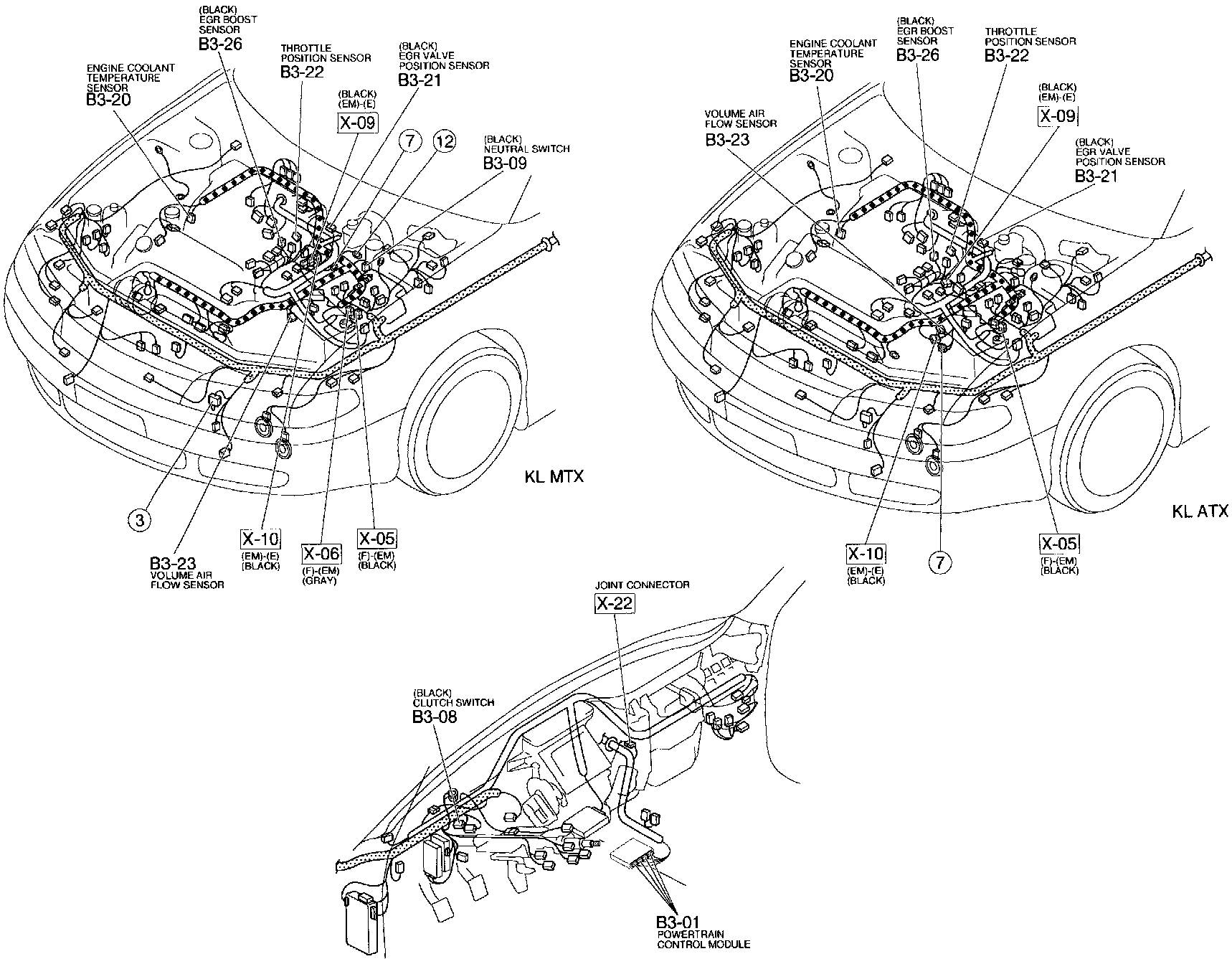

Connector Locations
>>
B-3c
B-3c
Connector Locations:
