EC-AT Control System

Engine Control System, Ignition System:

Engine Control System, Ignition System- Connectors:

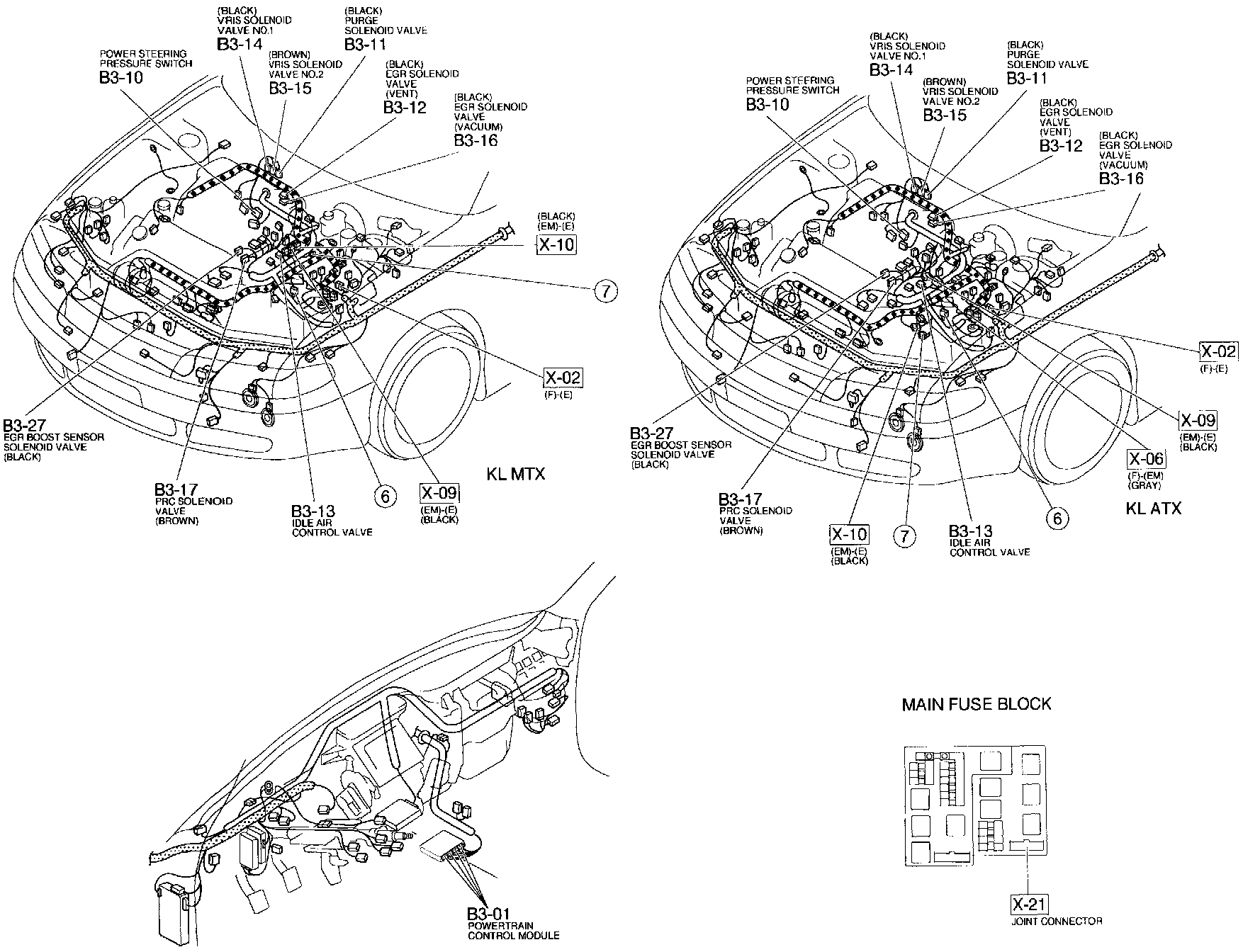

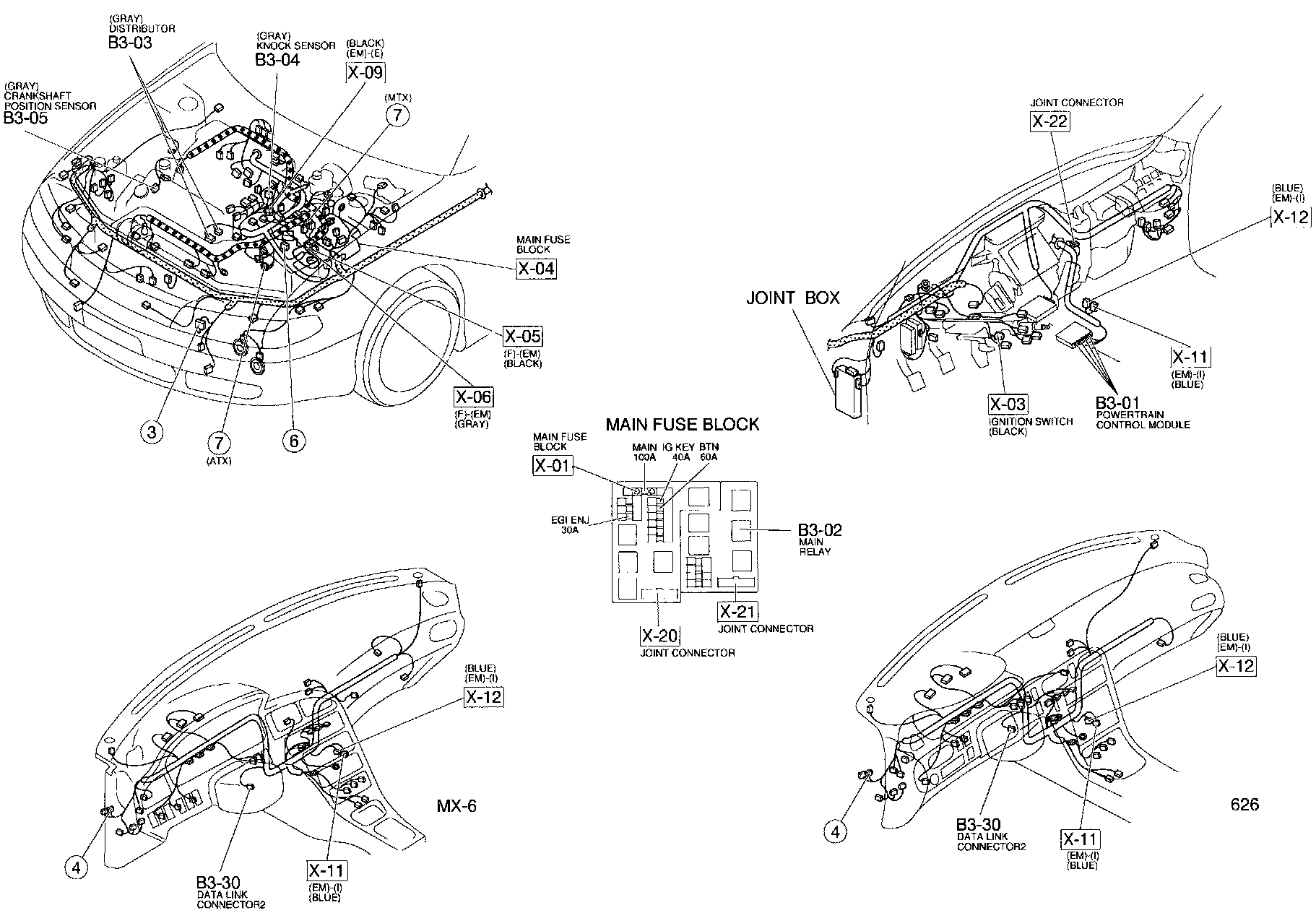

Connector Locations:

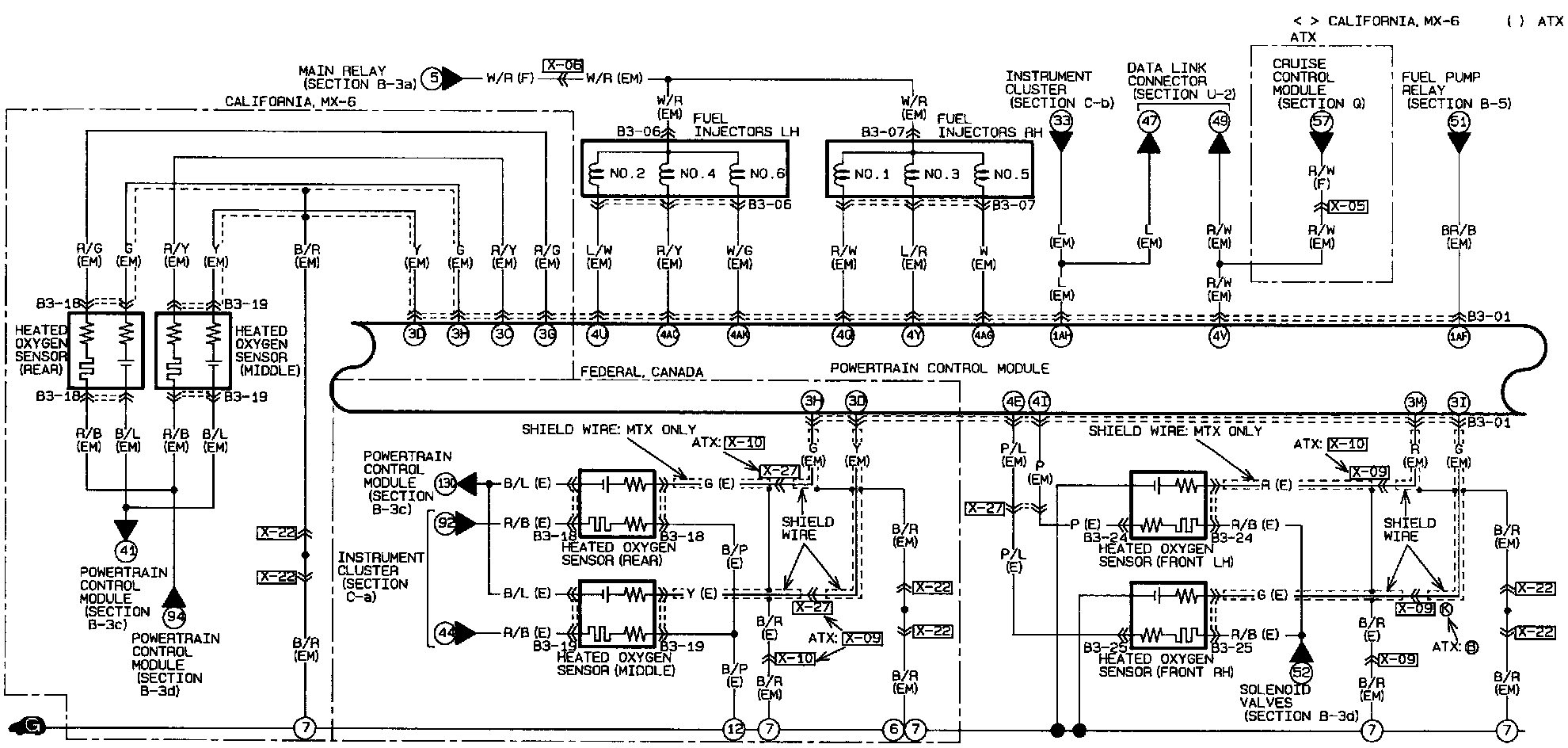

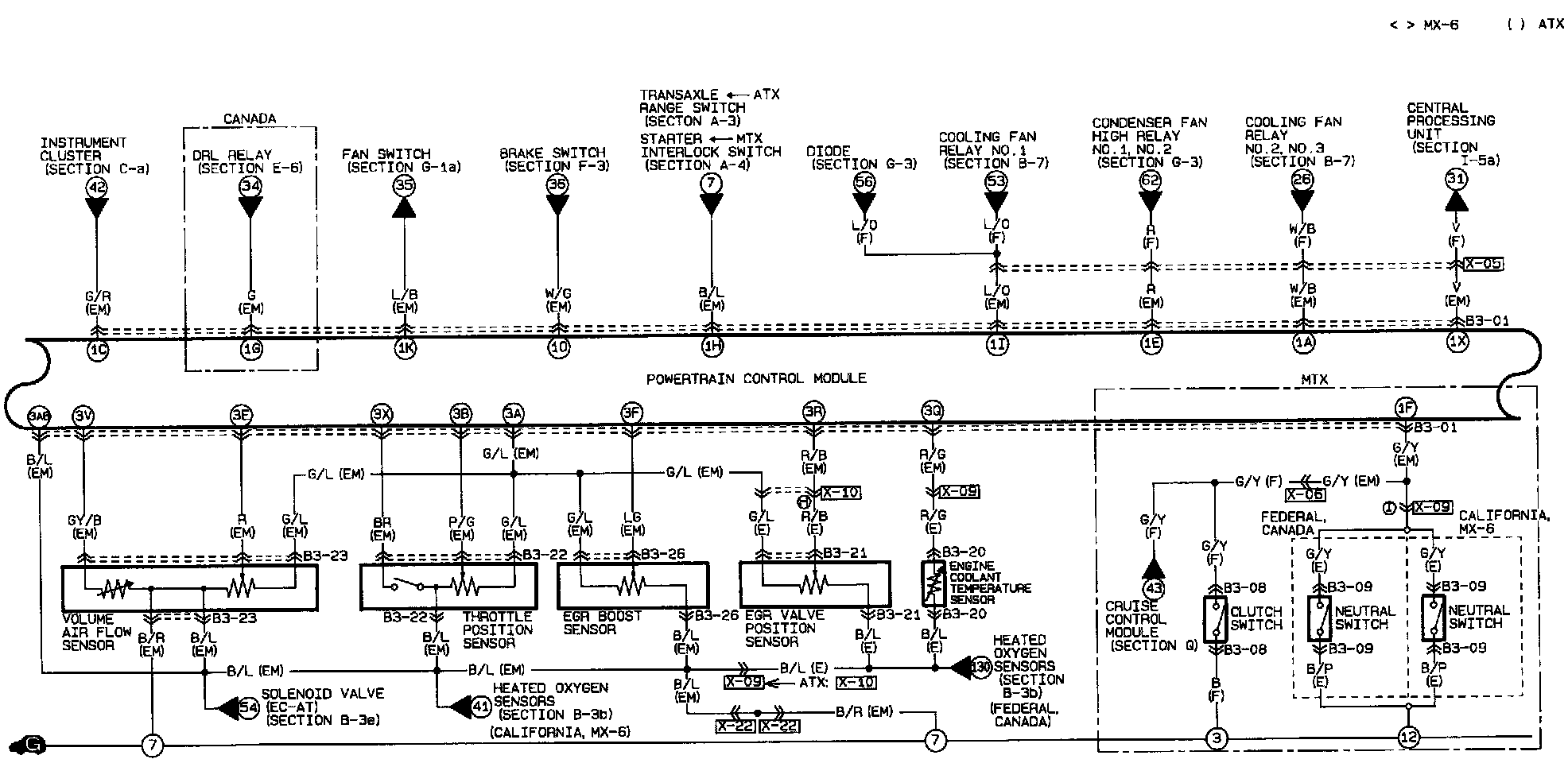

Engine Control System:

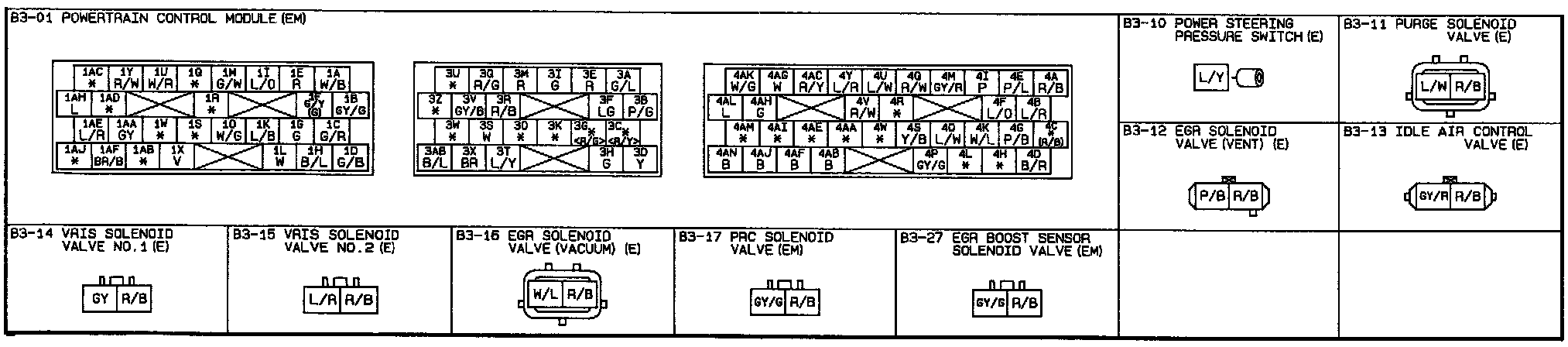

Engine Control System- Connectors:

Connector Locations:

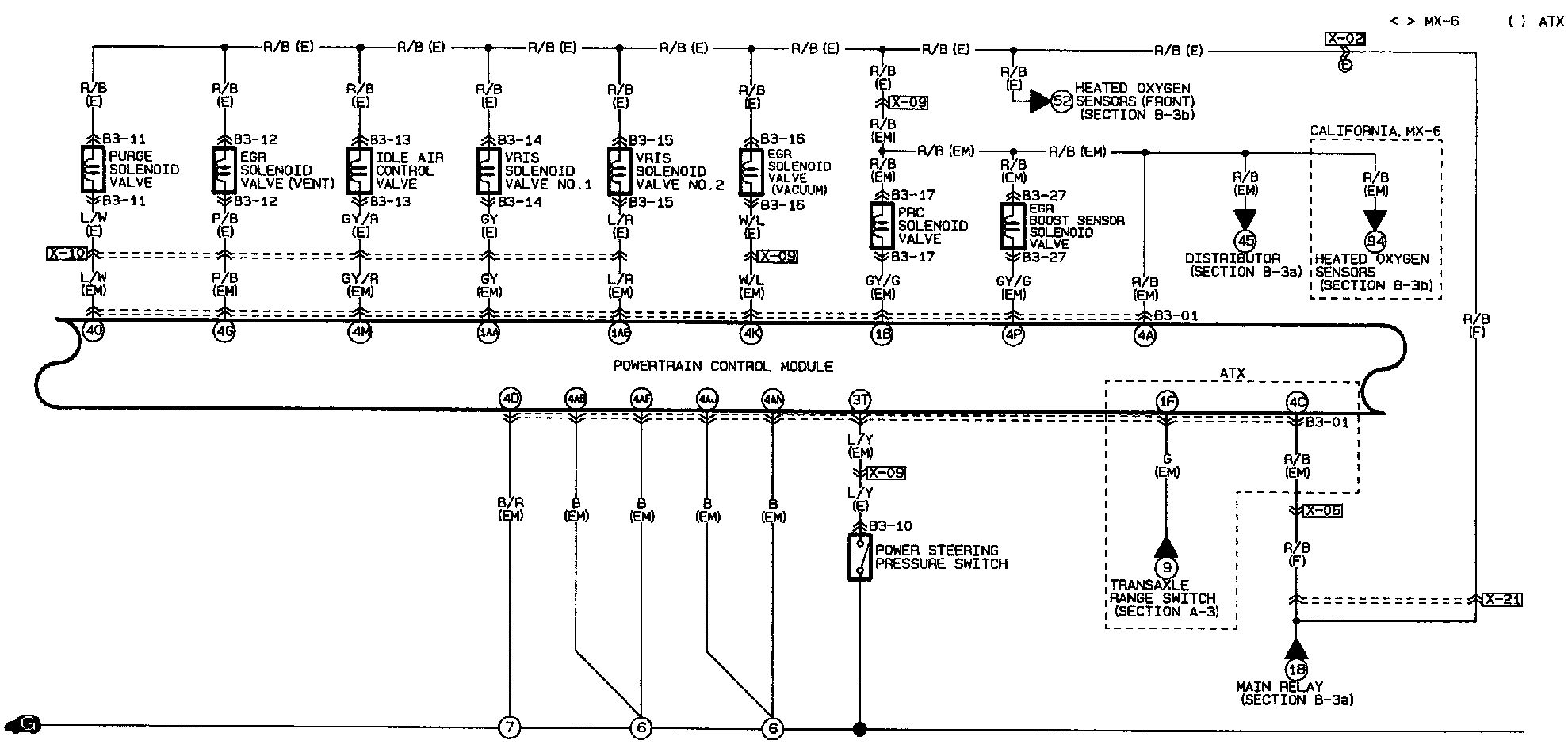

Engine Control System:

Engine Control System- Connectors:

Connector Locations:

Engine Control System:

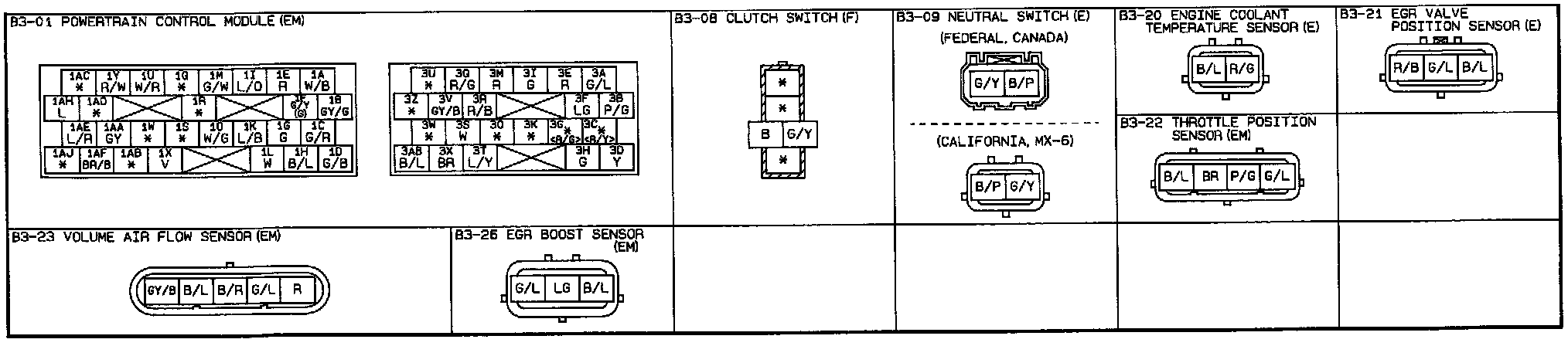

Engine Control System- Connectors:

Connector Locations:

Engine Control System, EC-AT Control System:

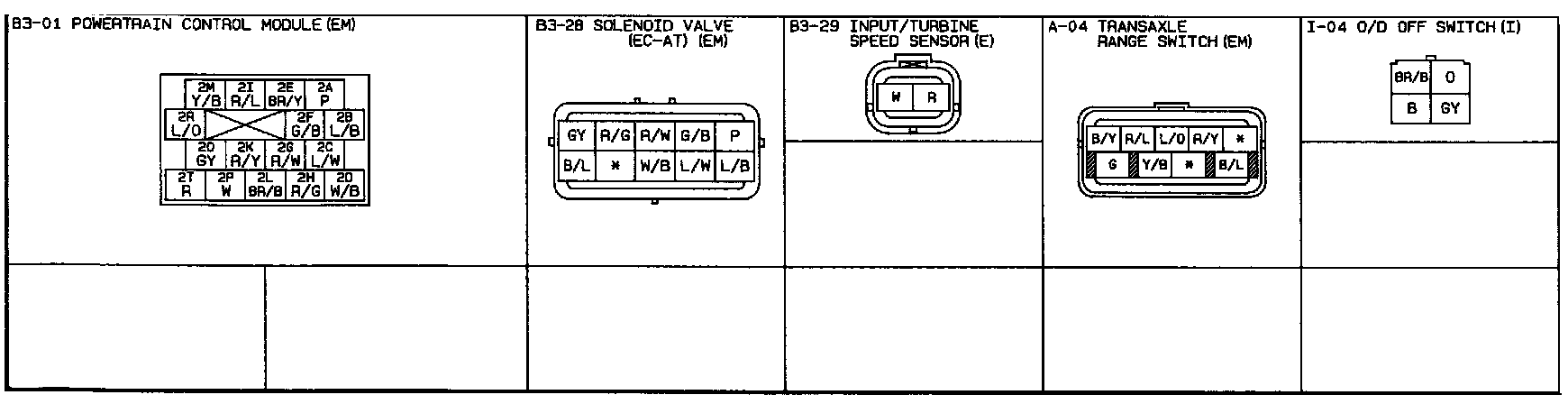

Engine Control System, EC-AT Control System- Connectors:

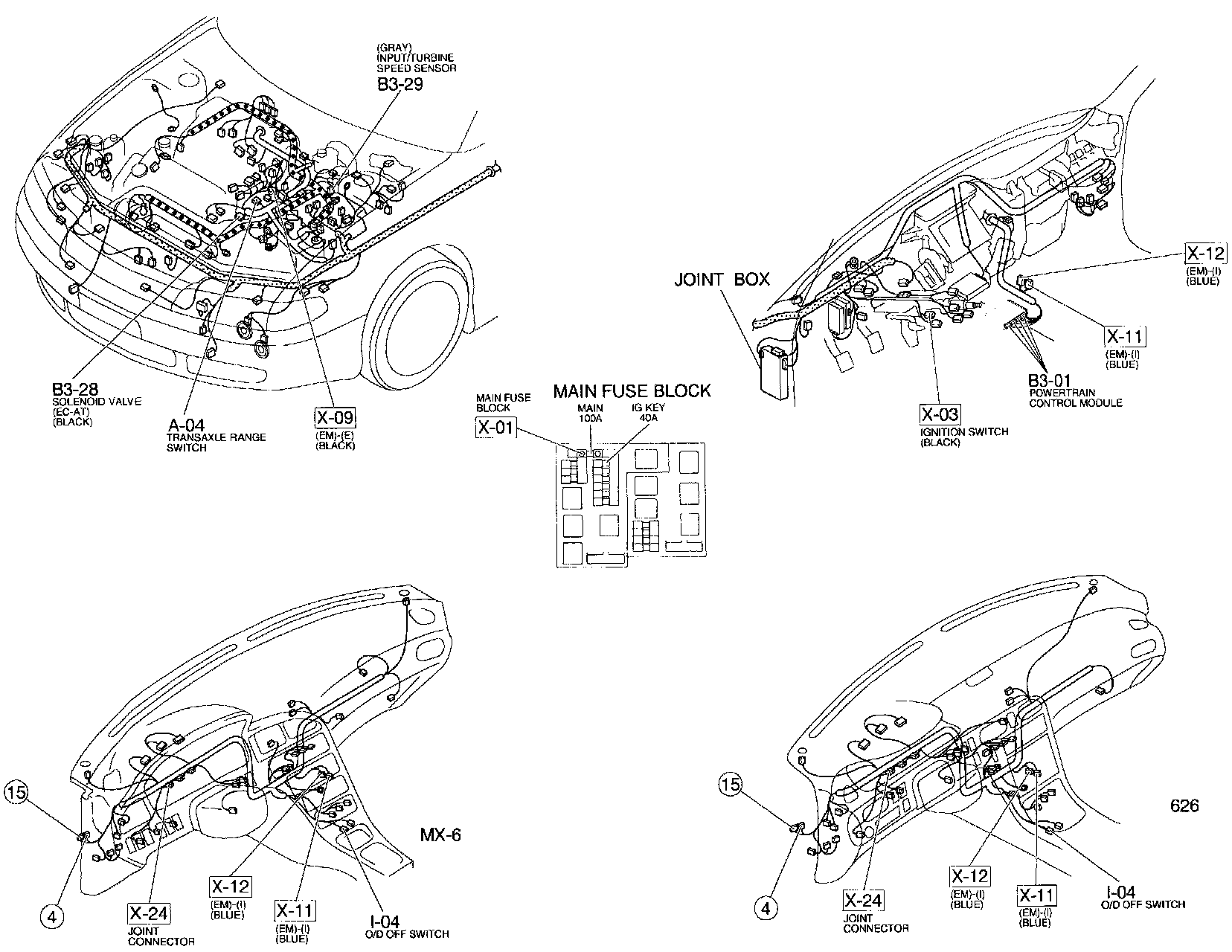

Connector Locations:
