Ignition Switch

Inspection

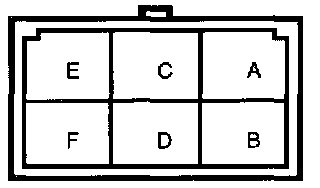

1. Disconnect the ignition switch connector.

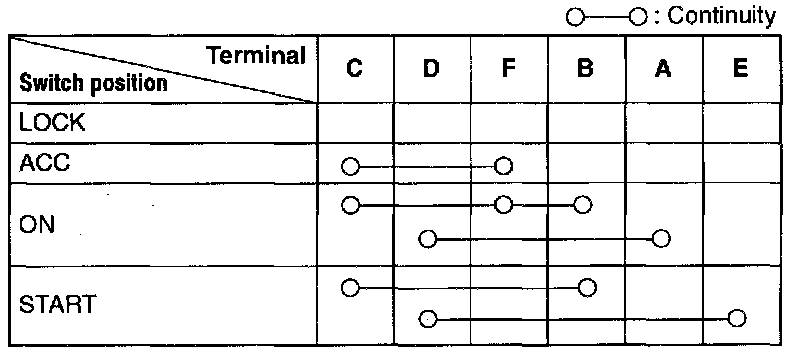

2. Check for continuity between the terminals of the ignition switch.
3. If not as specified, replace the ignition switch.
