Sunroof - Lower Panel Cover is Loose
Bulletin No.: 049/96Issued: 11/21/96
Revised:
Category
S
Applicable Model/s
1995 - 97 Millenia
Subject:
SUN ROOF LOWER PANEL COVER LOOSE
APPLICABLE MODELS
All 1995-97 Millenia
DESCRIPTION
When the sun shade is opened, the lower panel cover may hang down. This is caused by insufficient adhesive holding the velcro fastener.
Inspect vehicles at PDI and repair customer complaints according to the following instructions.
NOTE:
Gather the following items prior to repair.
Isopropyl Alcohol
Primer developed specifically for resin acrylic adhesives [3M (K-500 or DP-900)]
Brush for applying primer
REPAIR PROCEDURE
1. Remove the left and right lower panel covers.
CAUTION:
Pull the Panel covers straight down to remove. Pulling any other direction will break cover pins.
2. Remove all velcro fasteners from panels.
CAUTION:
Use care to avoid ripping or damaging velcro fasteners. These fasteners will be reinstalled.
3. Remove all residue adhesive using isopropyl alcohol.
4. Apply primer and allow to dry.
NOTE:

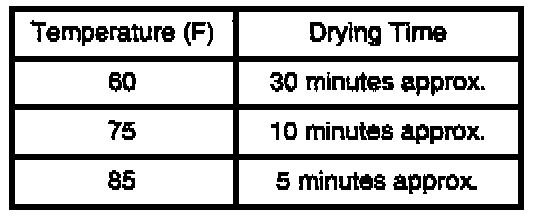

Do not allow dust or dirt to contaminate primer while drying. Drying times are listed. Use of heat guns require minimal drying time.
5. Position the velcro fastener on the lower panel cover and apply pressure to affix the fastener to the panel cover.
WARRANTY INFORMATION
(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)
