Cabin Temperature Sensor / Switch: Testing and Inspection

Inspection
1. Remove the passenger compartment temperature sensor
2. Measure the temperature around the passenger compartment temperature sensor.

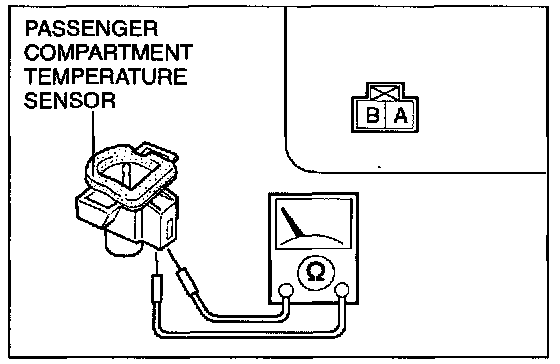

3. Measure the resistance between terminals A and B of the passenger compartment temperature sensor connector (male).

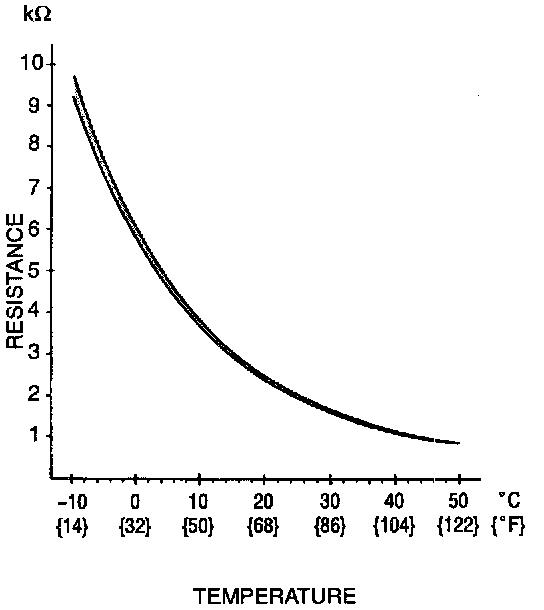

4. If the resistance is not in the shaded zone shown in the graph, replace the passenger compartment temperature sensor.
