EGR Valve: Service and Repair

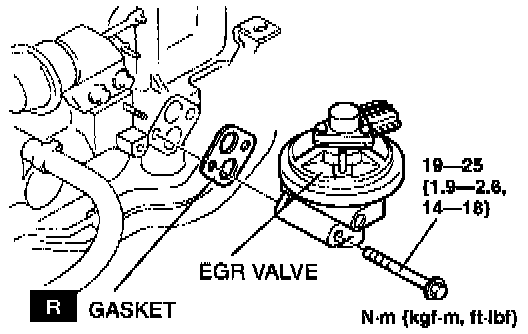

REPLACEMENT
1. Disconnect the vacuum hose.
2. Disconnect the EGR valve position sensor connector.
3. Remove the EGR valve.
4. Remove the gasket.
5. lnstall in the reverse order of removal.

Tightening torque: 19-25 Nm (14-18 ft.lbs.)
