Washer Fluid Level Indicator: Testing and Inspection







1. Partially peel off the right side mud guard.
2. Remove the windshield washer tank.

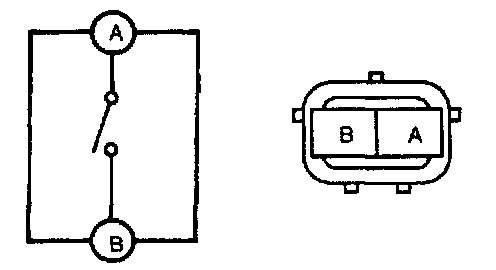

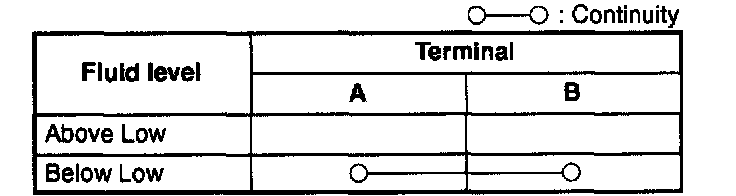

3. Inspect for continuity between the washer fluid-level sensor terminals by using an ohmmeter.
4. If not as specified, replace the washer fluid-level sensor.
