C-Pillar Trim

1. Turn over the seaming welt.
2. Remove the rear package trim.
3. Remove the lower anchor of the rear seat belt.

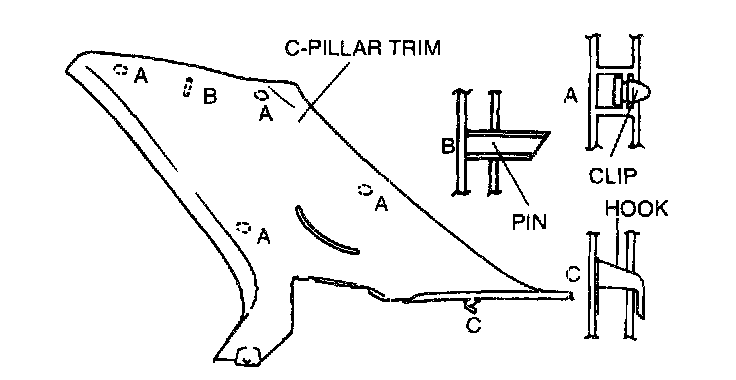

4. Pull the C-pillar trim to disengage clips A and pin B from the body.




5. Pull the C-pillar trim upward to disengage hook C from the body.
6. Install in the reverse order of removal.
