Coolant Temperature Sensor Test

1. Remove the engine coolant temperature sensor.

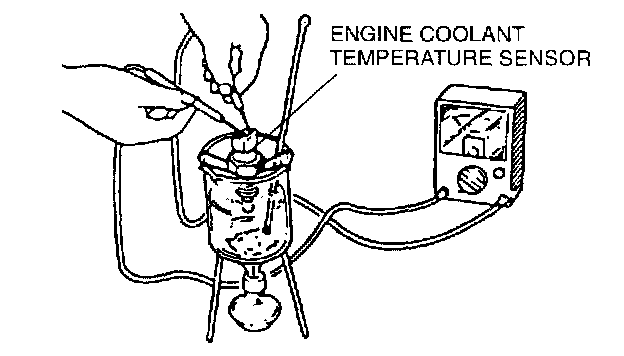

2. Place the engine coolant temperature sensor in water with a thermometer and heat the water gradually.

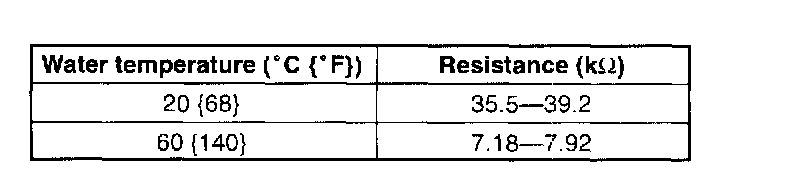

3. Measure the resistance of the sensor by using an ohmmeter.




4. If not as specified, replace the engine coolant temperature sensor.

Tightening torque: 15.7-23.5 Nm (11.6-17.3 ft.lbs.)
