Rear Seat Belt

CAUTION:
^ Do not disassemble the retractor. The emergency locking retractor (ELR) has a spring that will unwind if the retractor is disassembled. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly.




1. Remove the C-pillar trim.

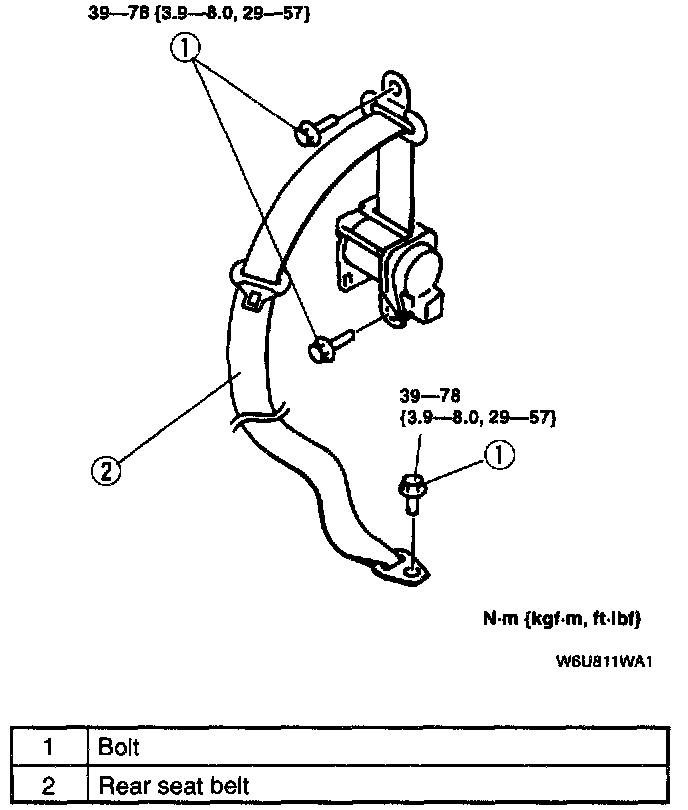

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
