Pinpoint Test 2: Flash Code 2/ Brake Switch Circuit Failure

PINPOINT TEST 2: FLASH CODE 2- BRAKE PEDAL POSITION SWITCH CIRCUIT FAILURE

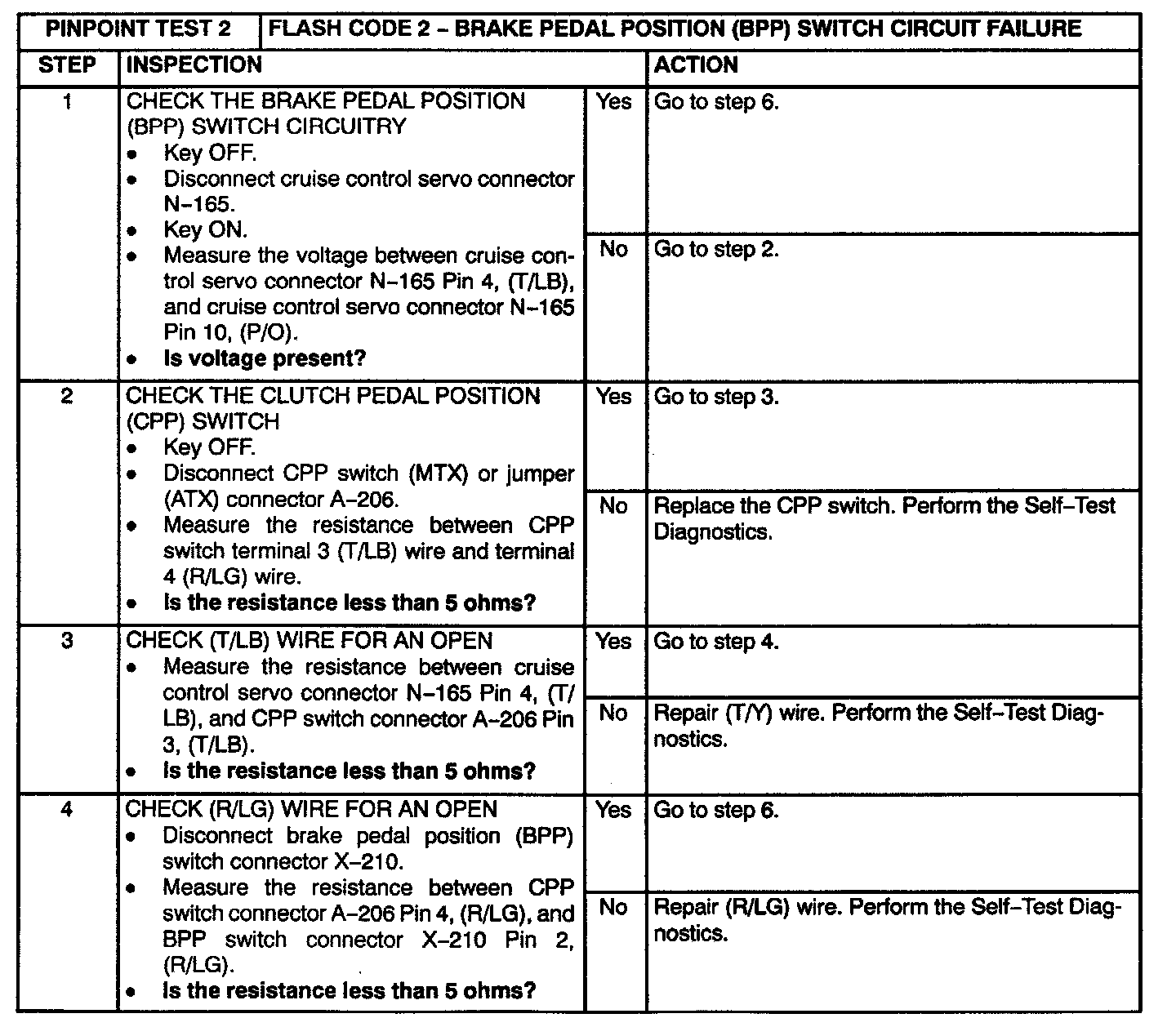

Part 1 of 2

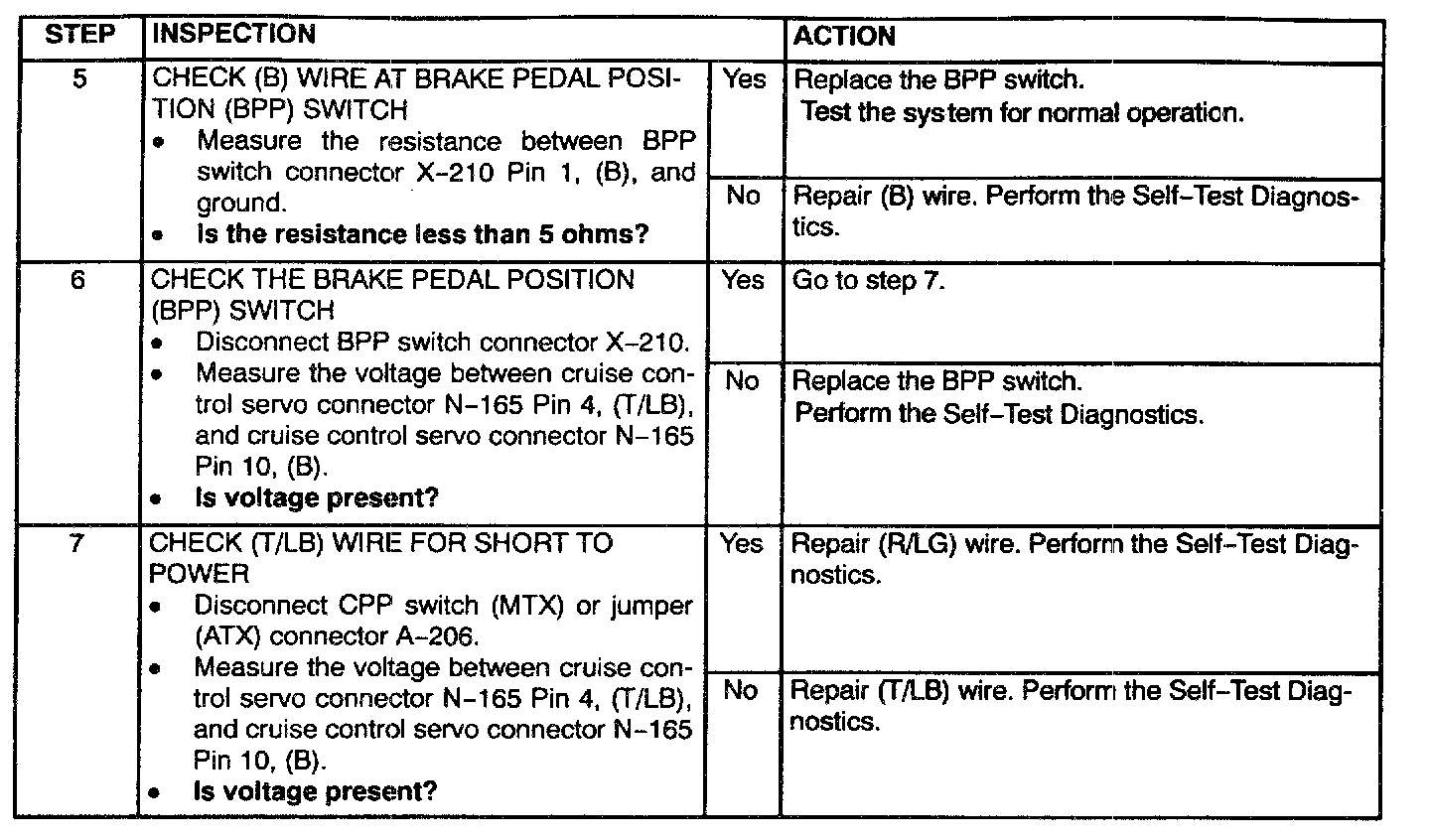

Part 2 of 2
