Pinpoint Test 4: Flash Code 4/Cruise Sensor Circuit Failure

PINPOINT TEST 4: FLASH CODE 4-VEHICLE CRUISE SENSOR CIRCUIT FAILURE

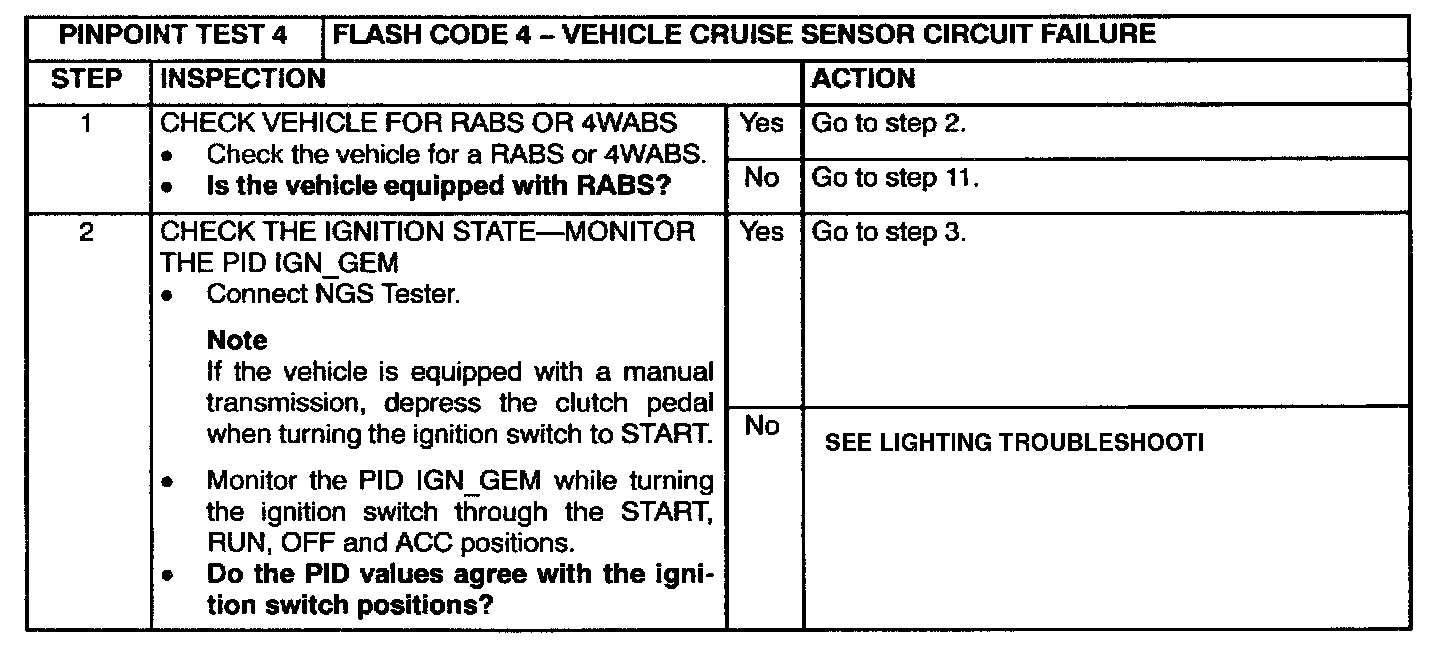

Part 1 of 4

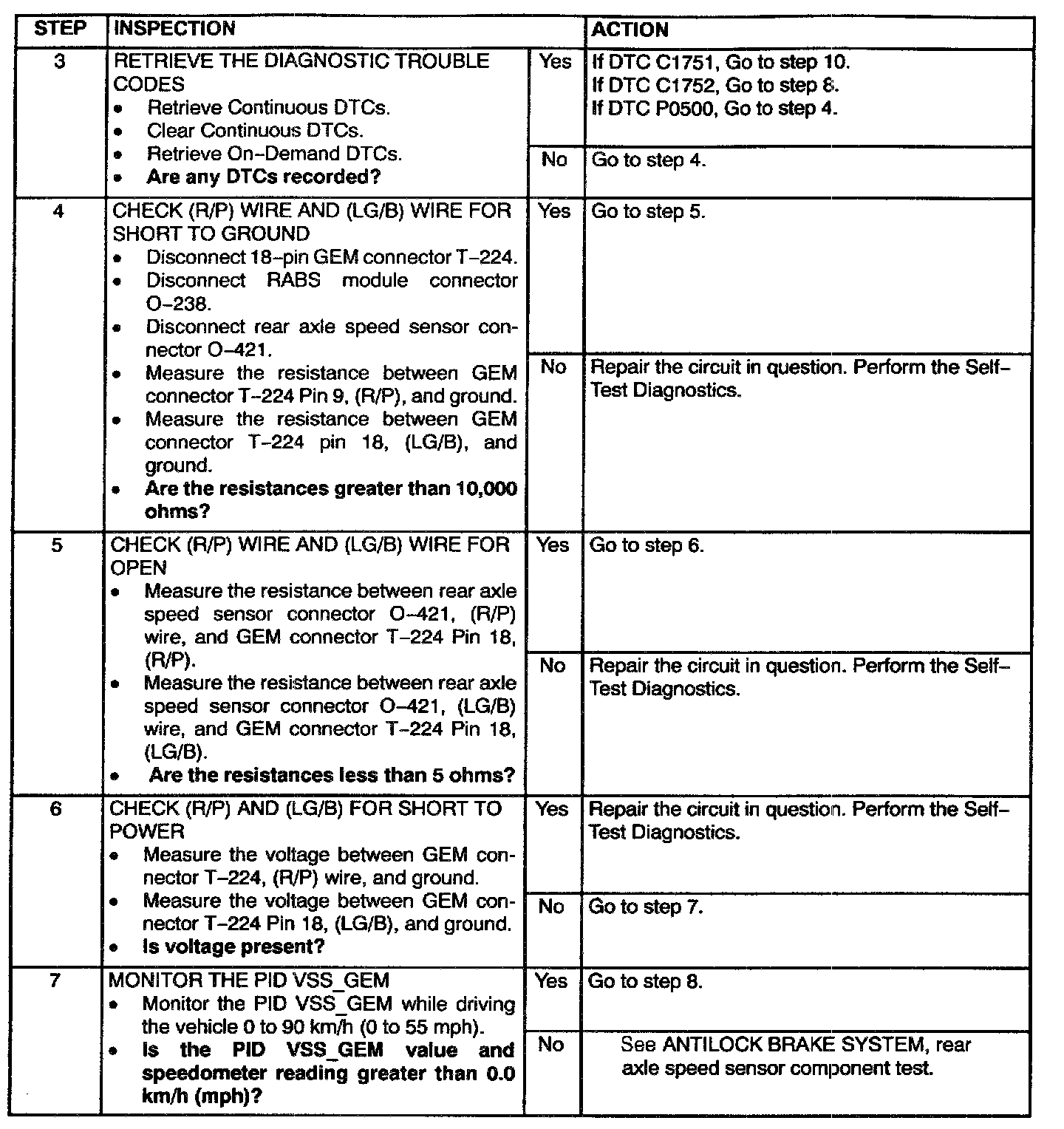

Part 2 of 4

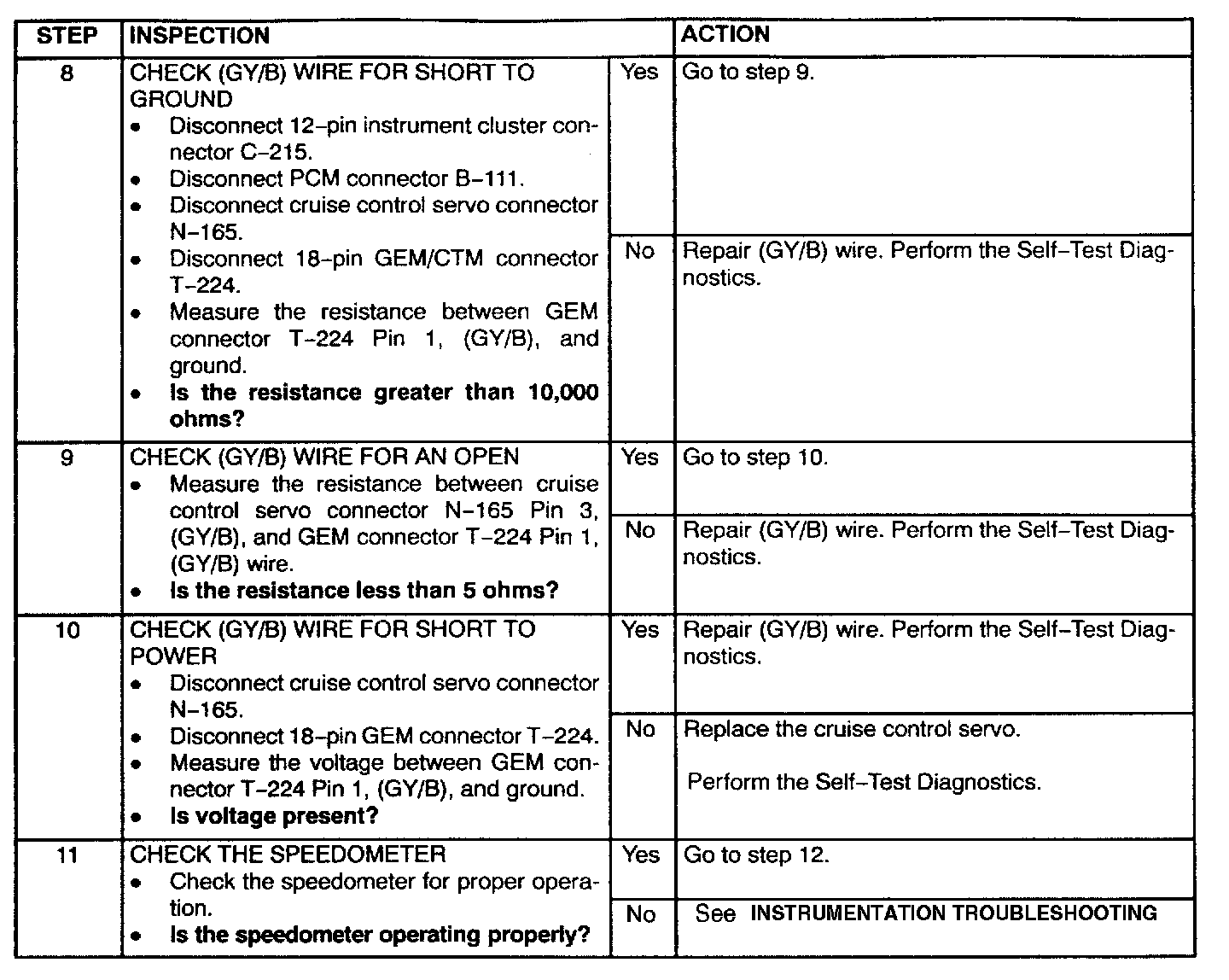

Part 3 of 4

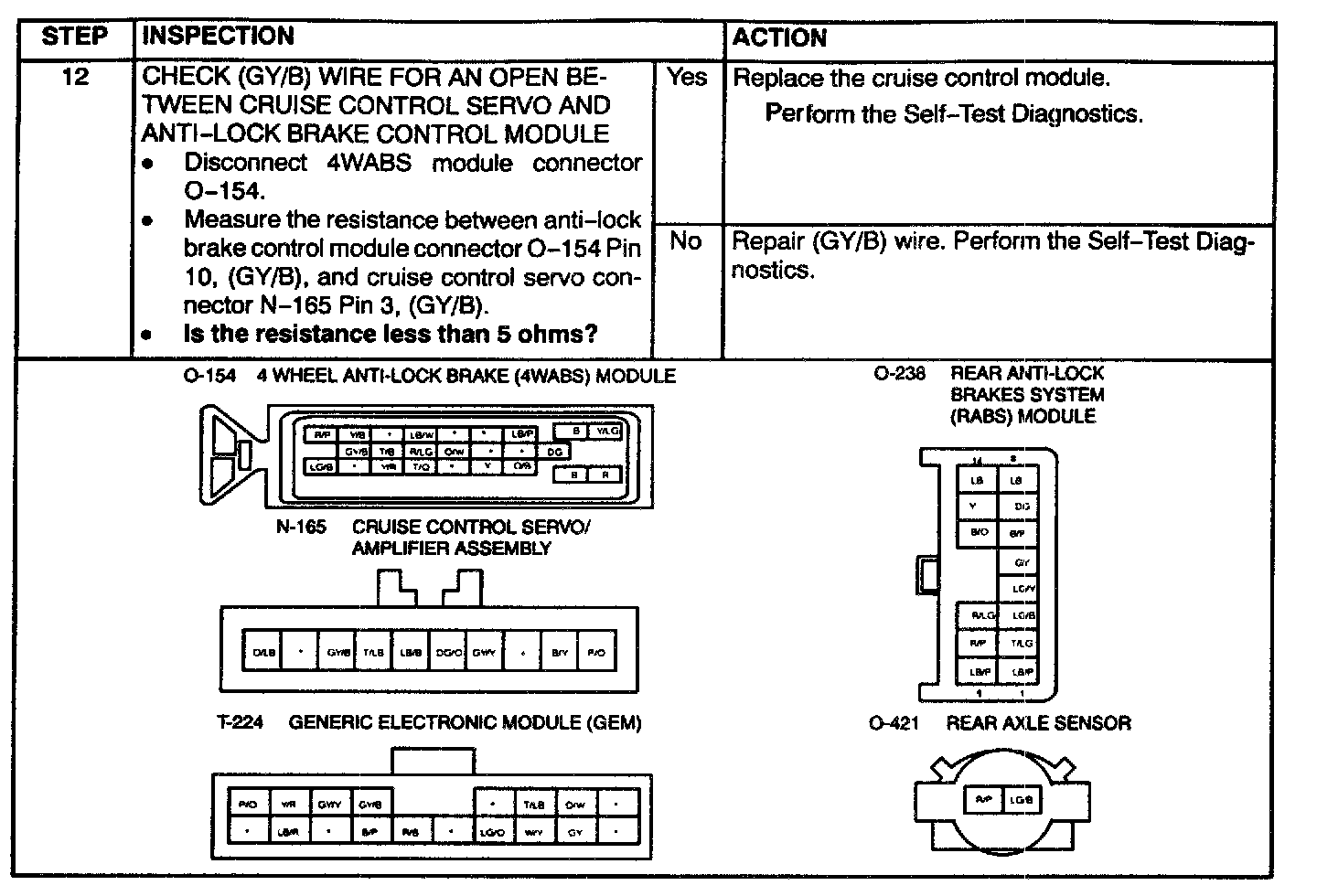

Part 4 of 4
