Mazda
>>
1998
>>
B2500 SE Cab Plus 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>
H-1A
H-1A

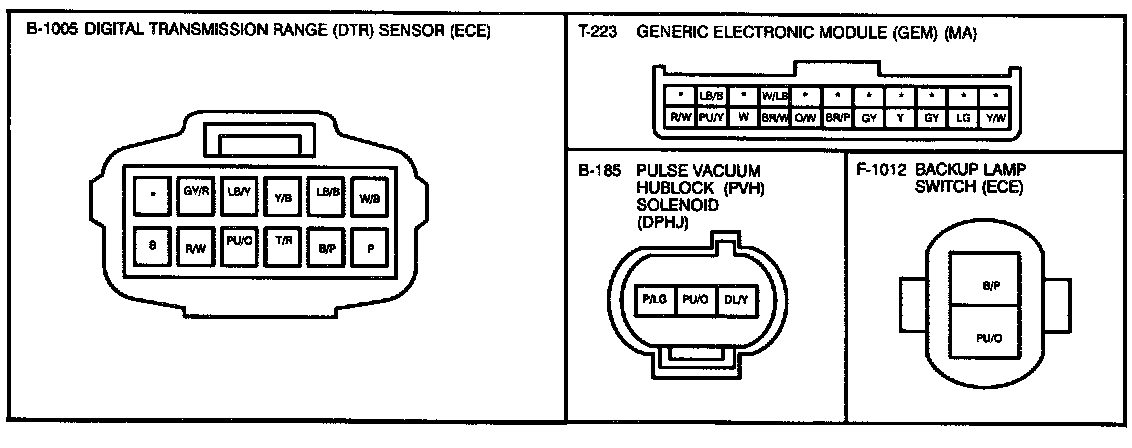

Electronic Shift Control-Connectors:
