Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1998
>>
B2500 SE Cab Plus 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>
T-1A
T-1A

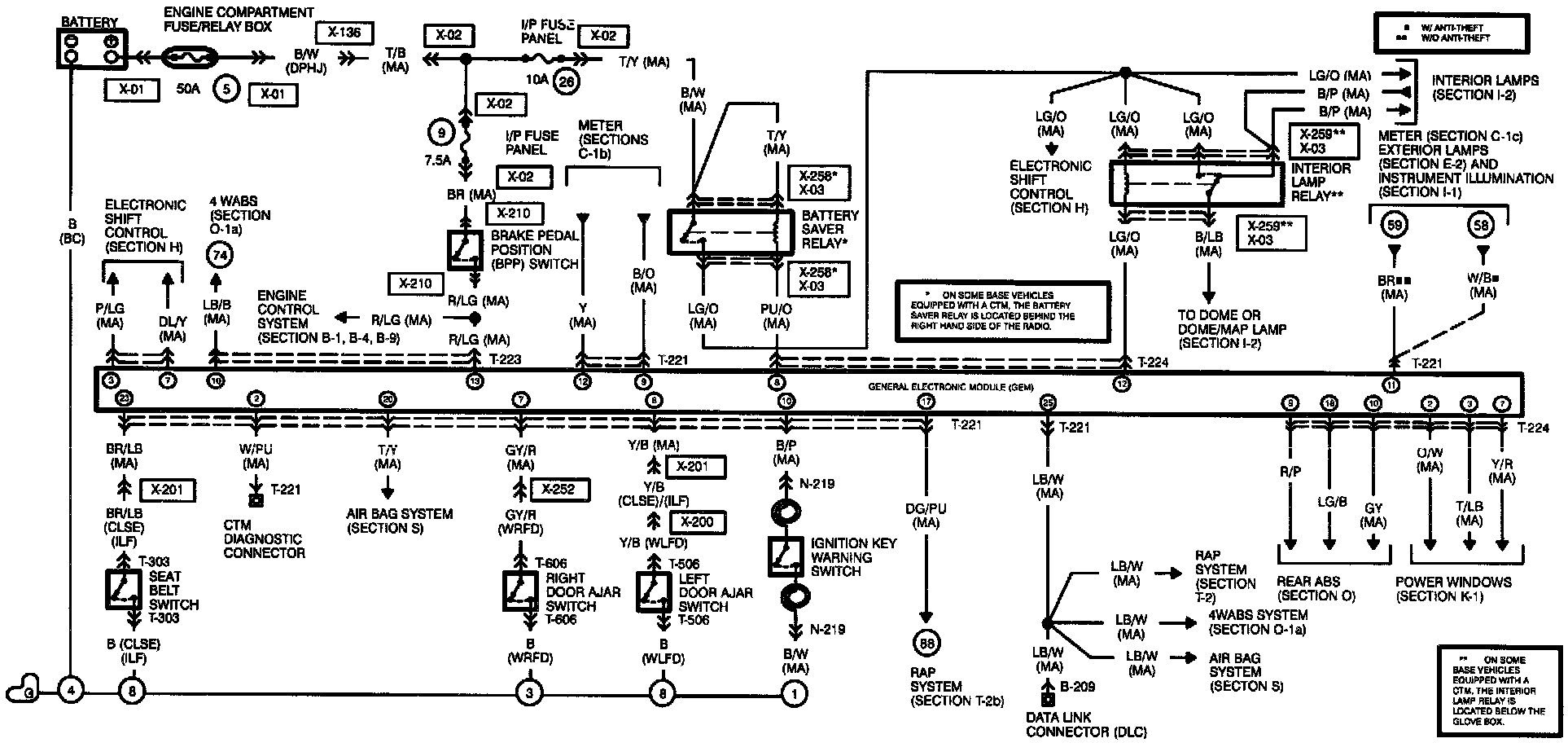

Generic Electronic Module (GEM) System:
