Home >> Mazda >> 1998 >> B2500 SE Cab Plus 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, Transfer Case >> H-1A

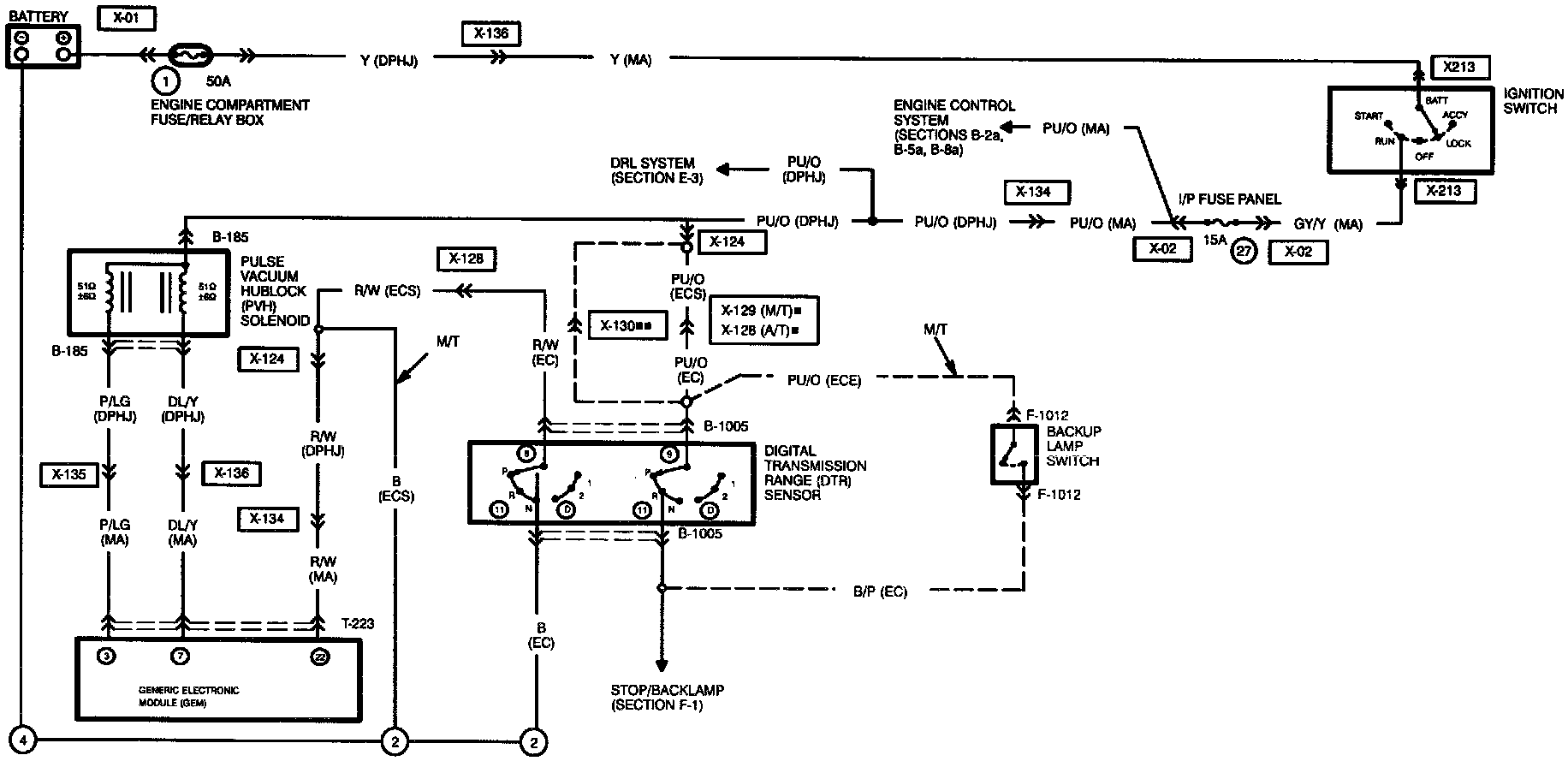

H-1A

Electronic Shift Control:
