Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

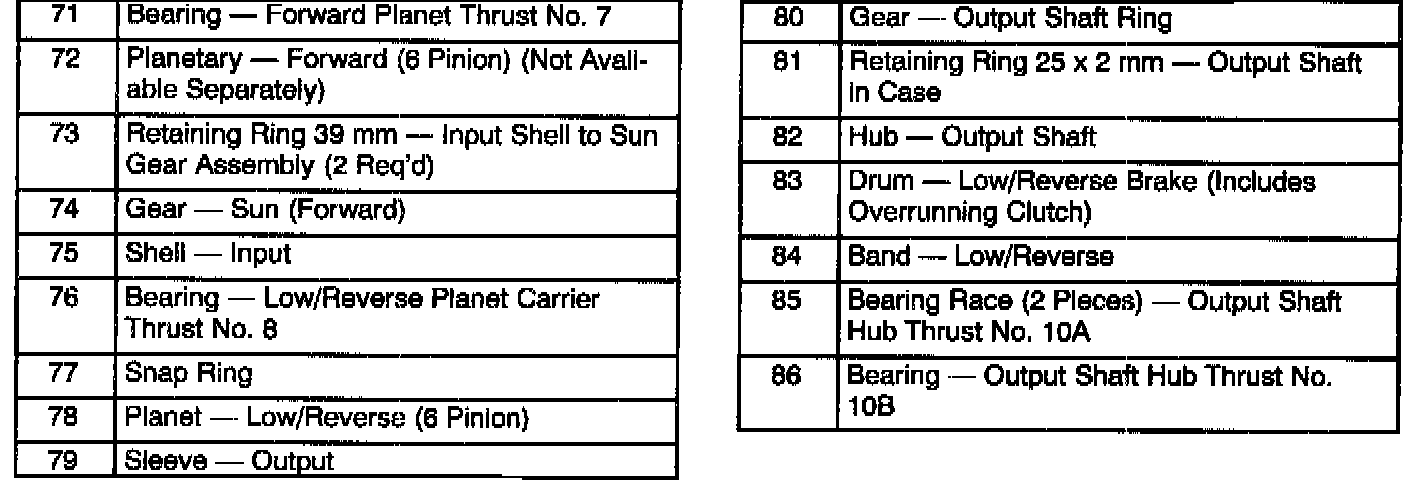

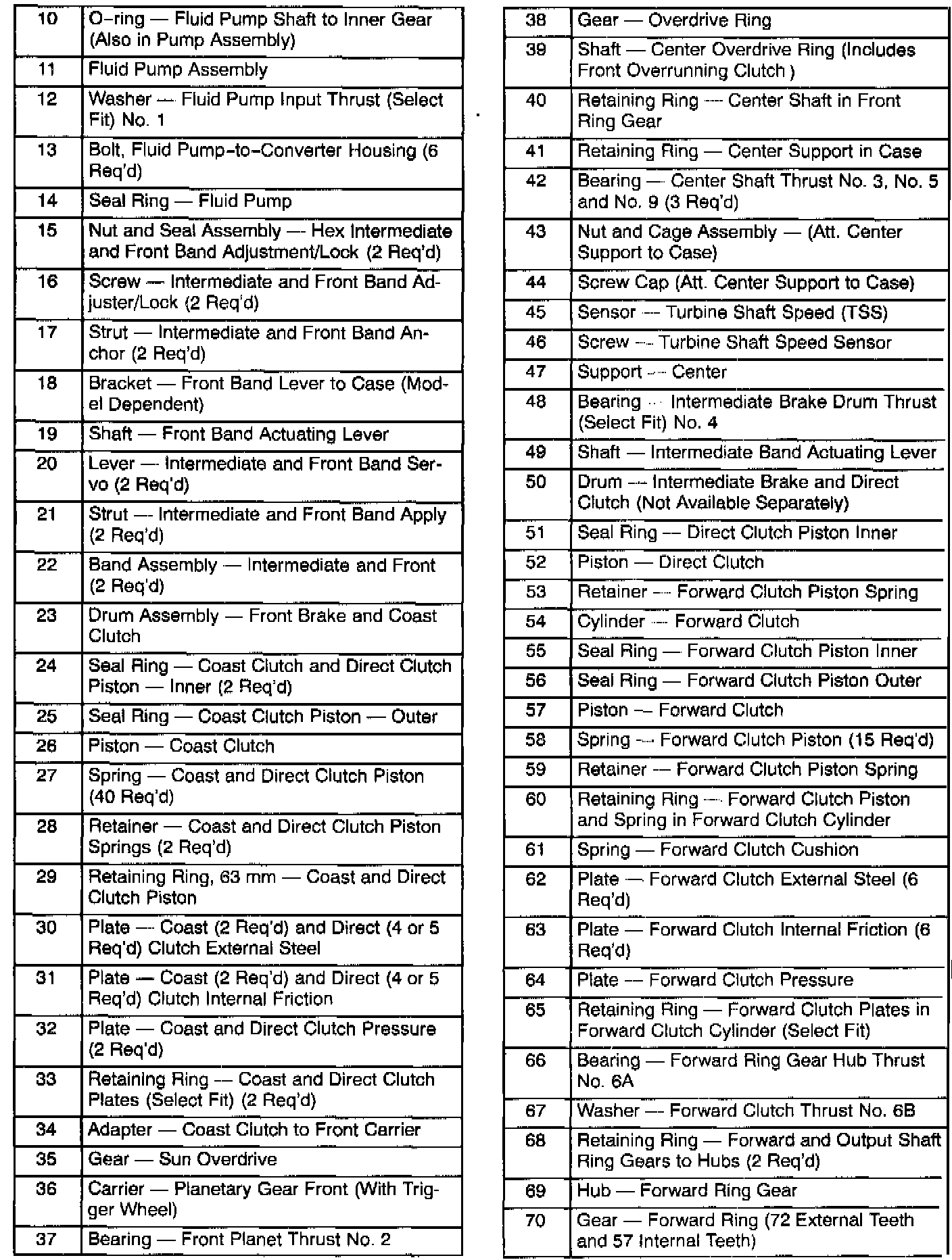

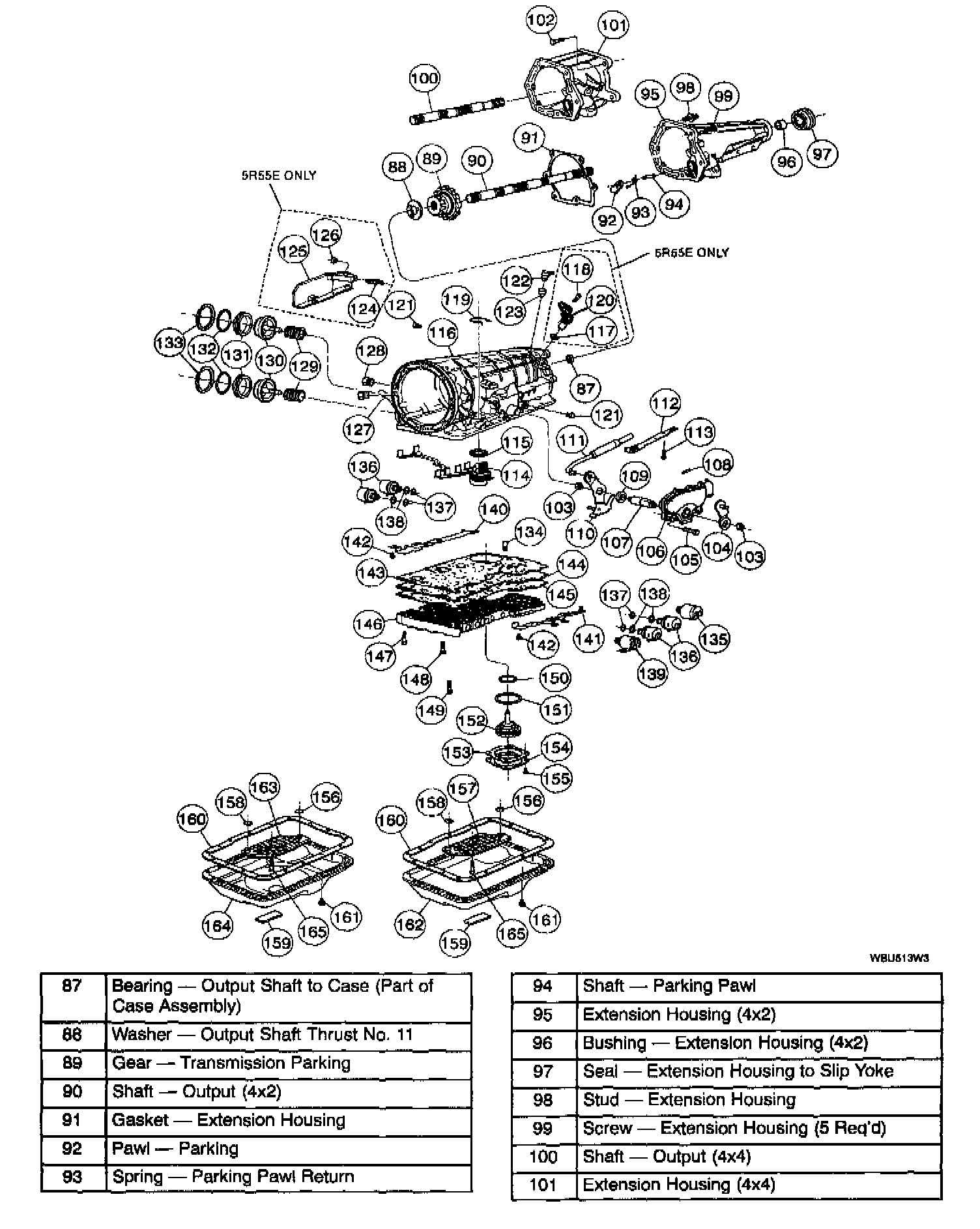

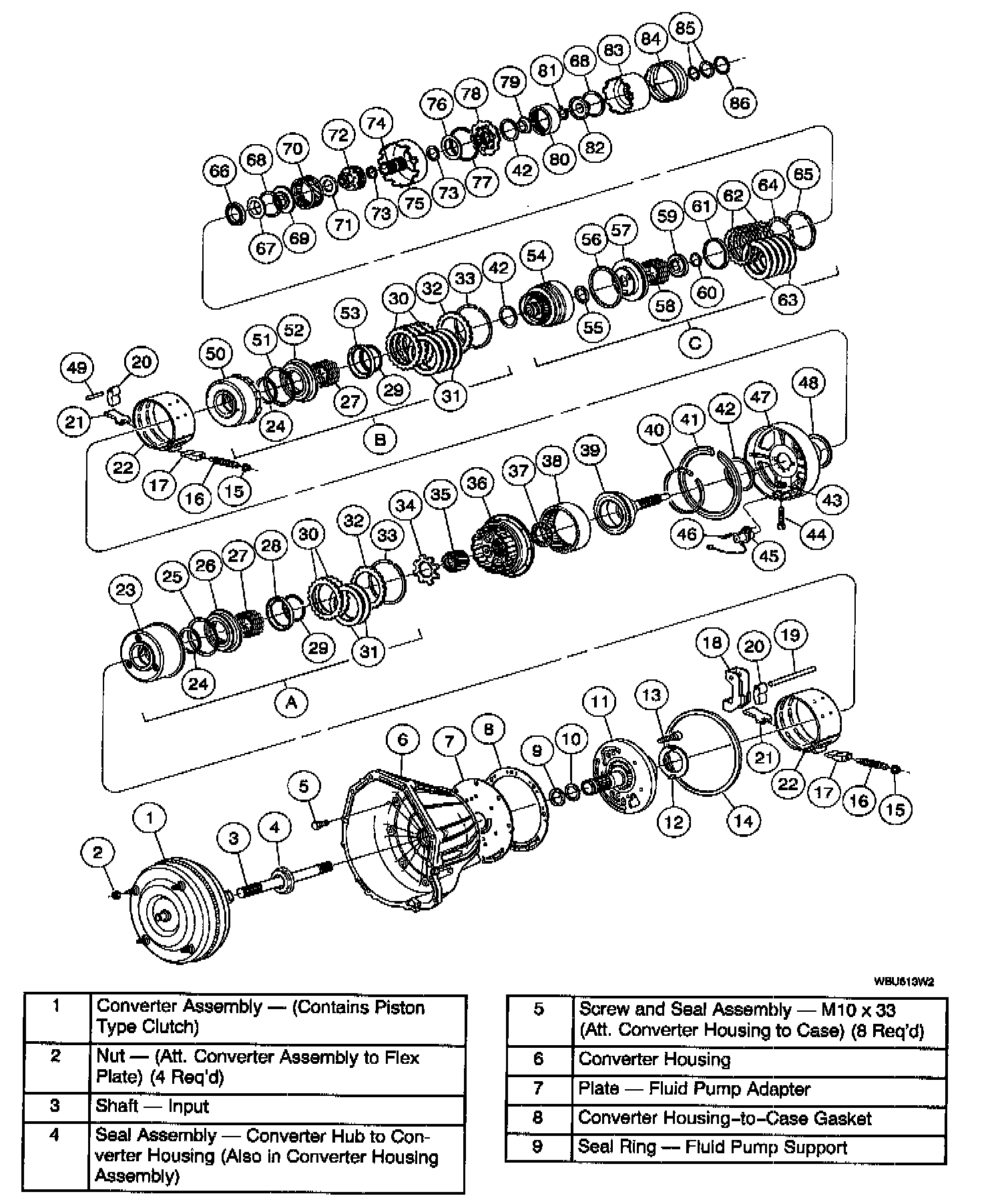

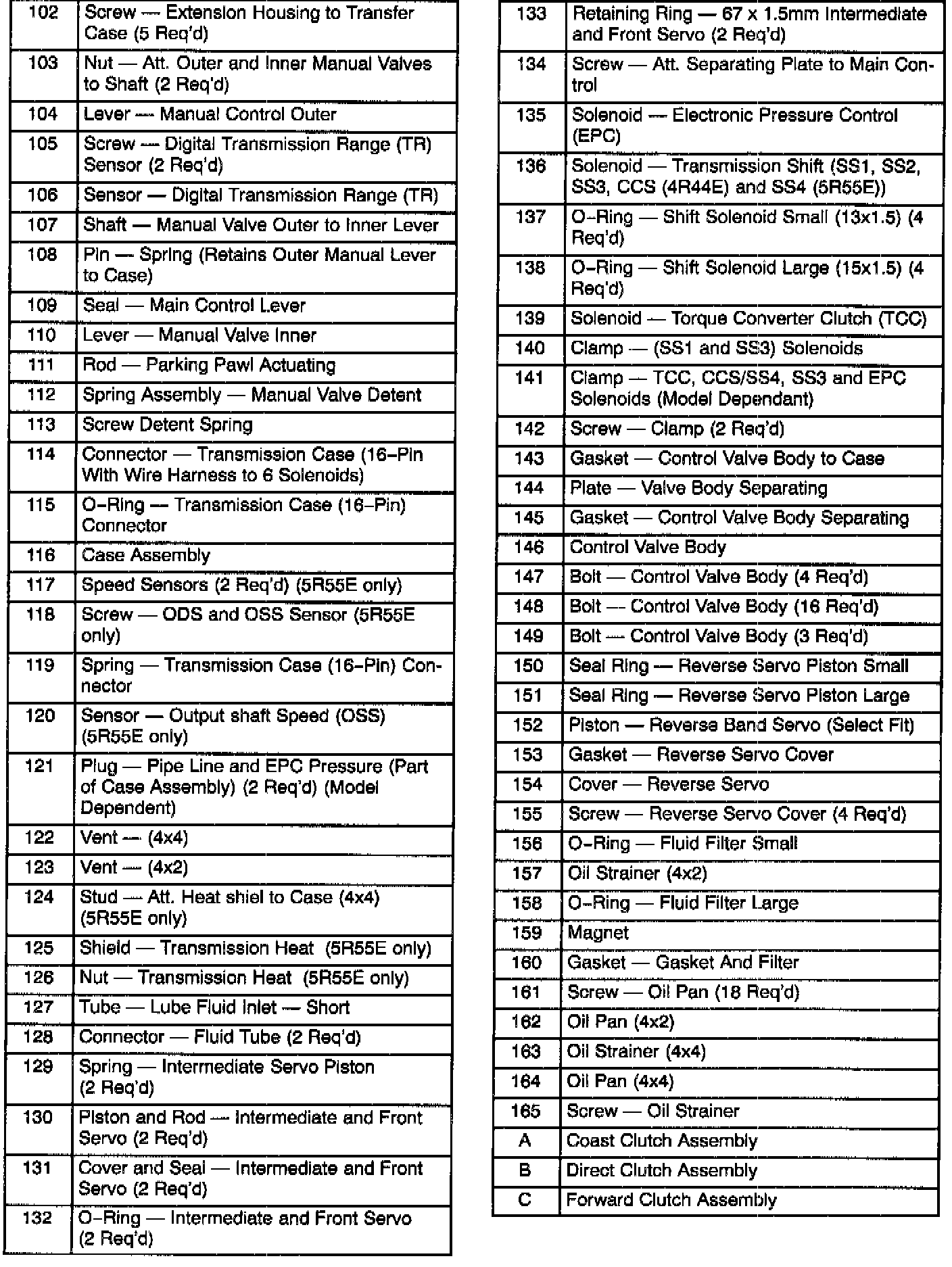

Disassembled View

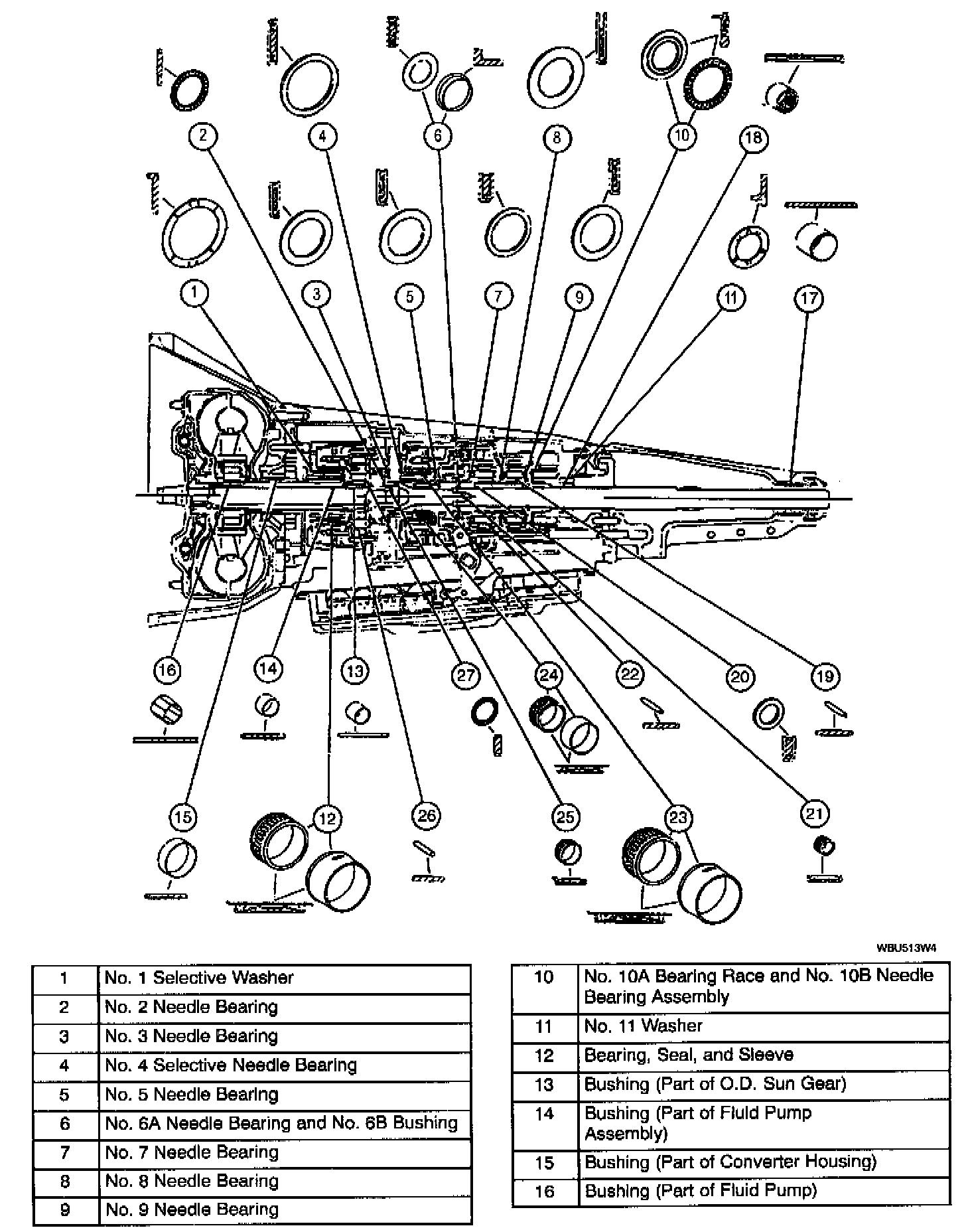

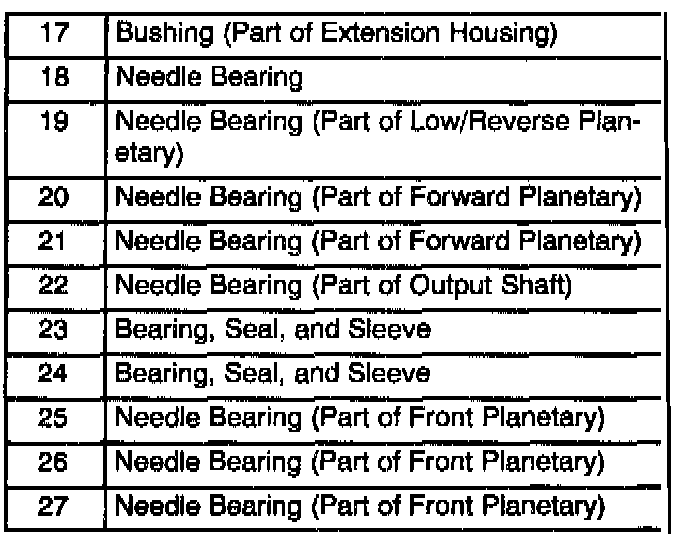

Bushings, Bearings and Thrust Washers Locator

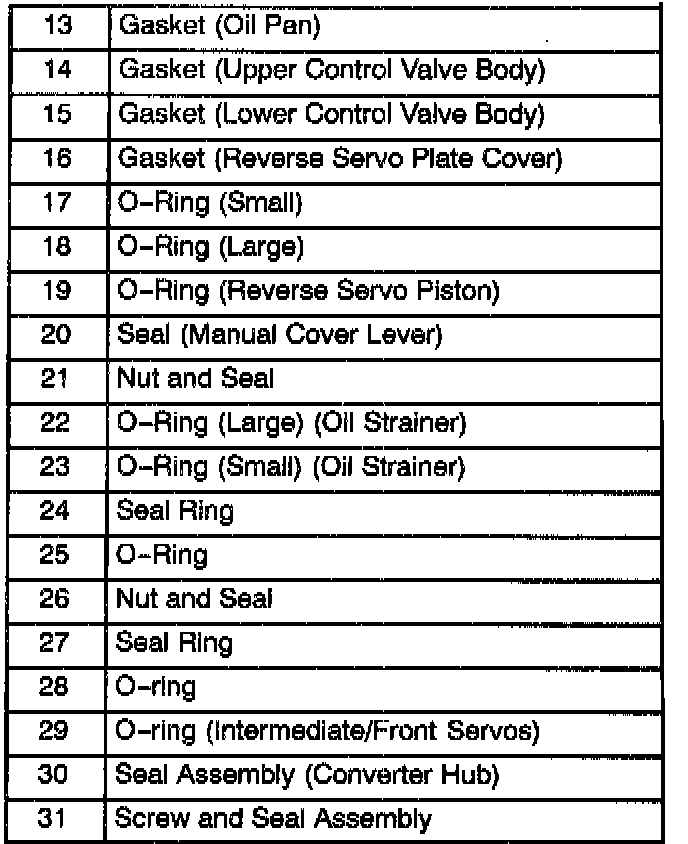

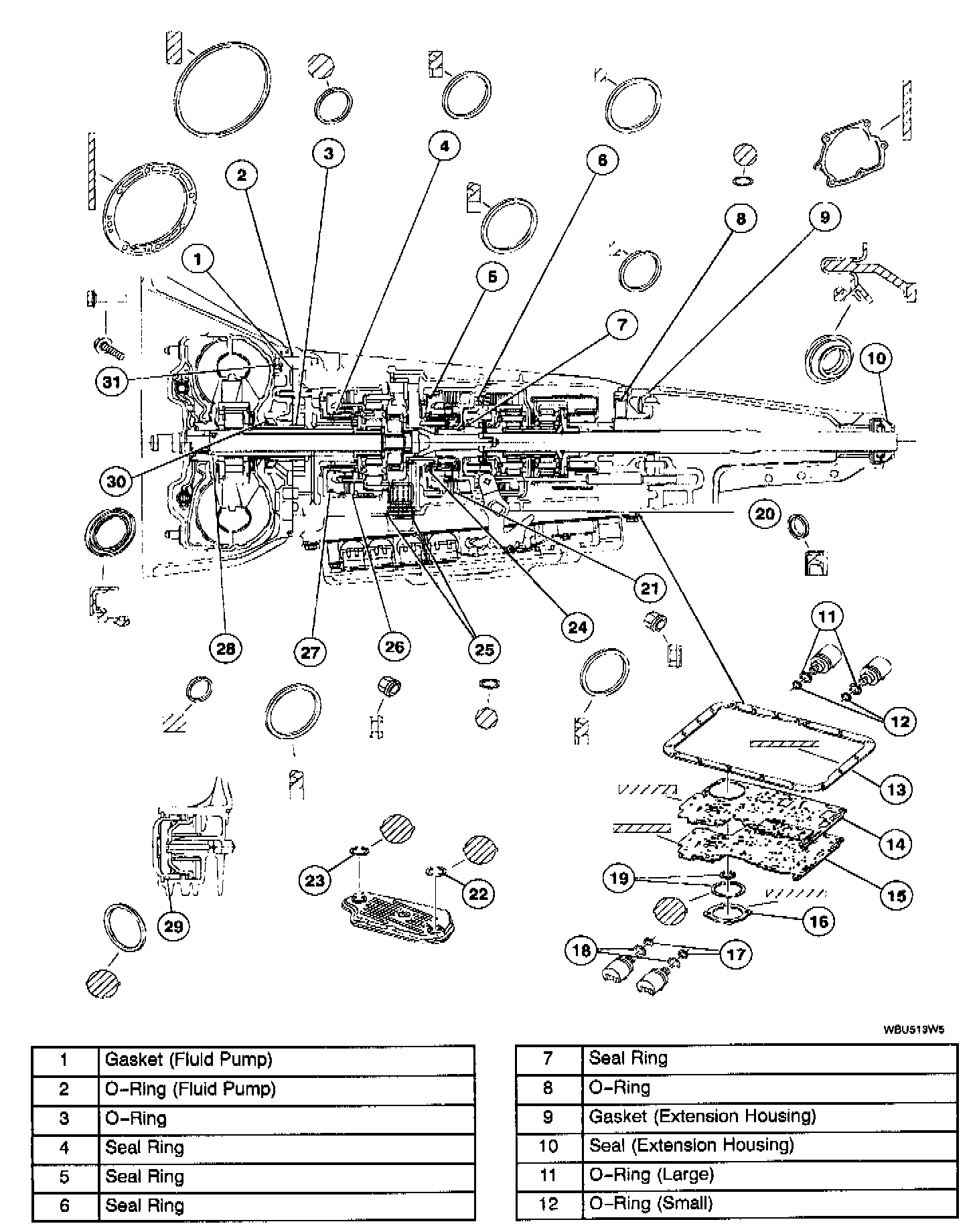

Seals, Rings and Gaskets Locator
