Crankshaft Position Sensor: Testing and Inspection

TEST 9: CRANKSHAFT POSITION SENSOR




Part 1 of 3

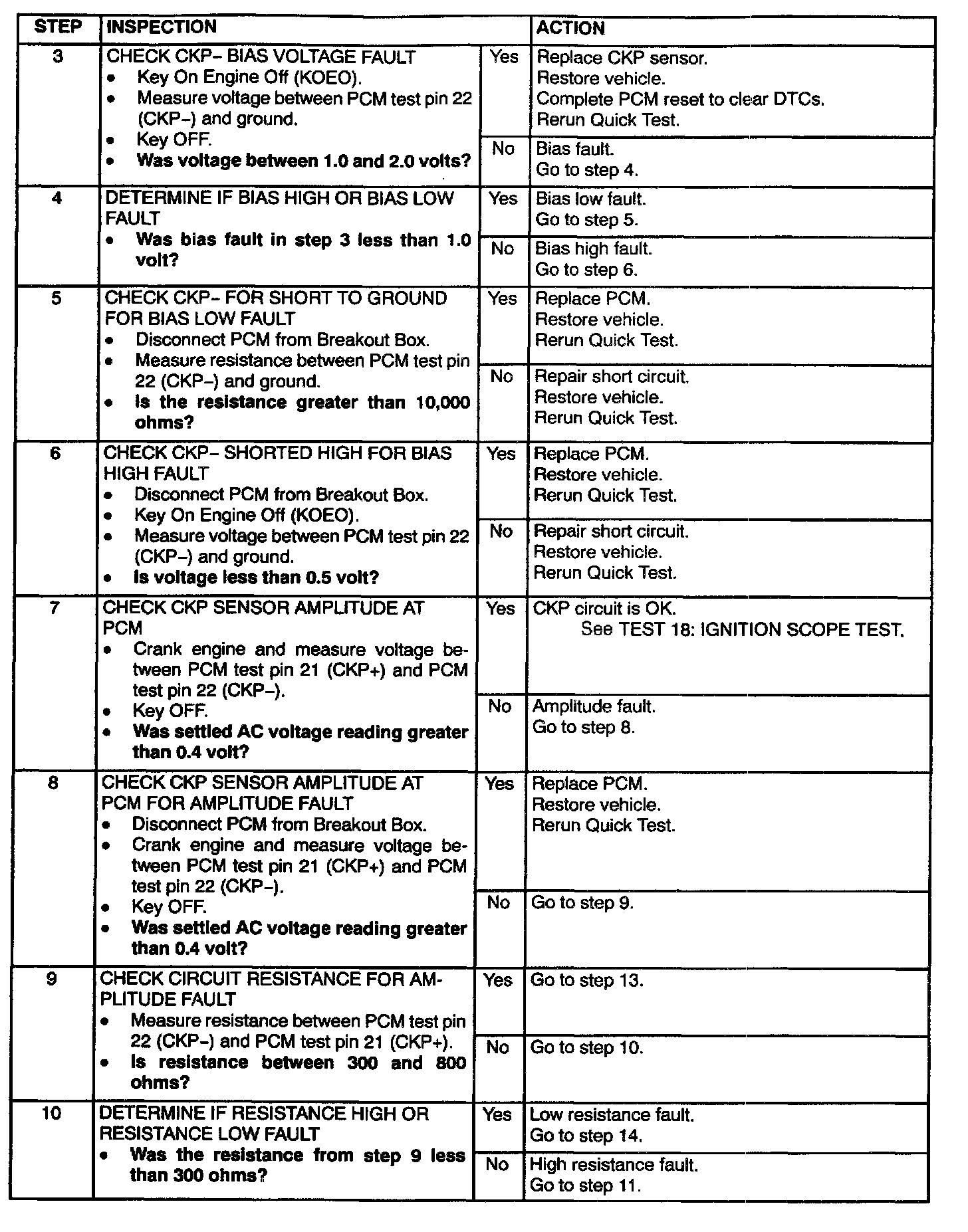

Part 2 of 3

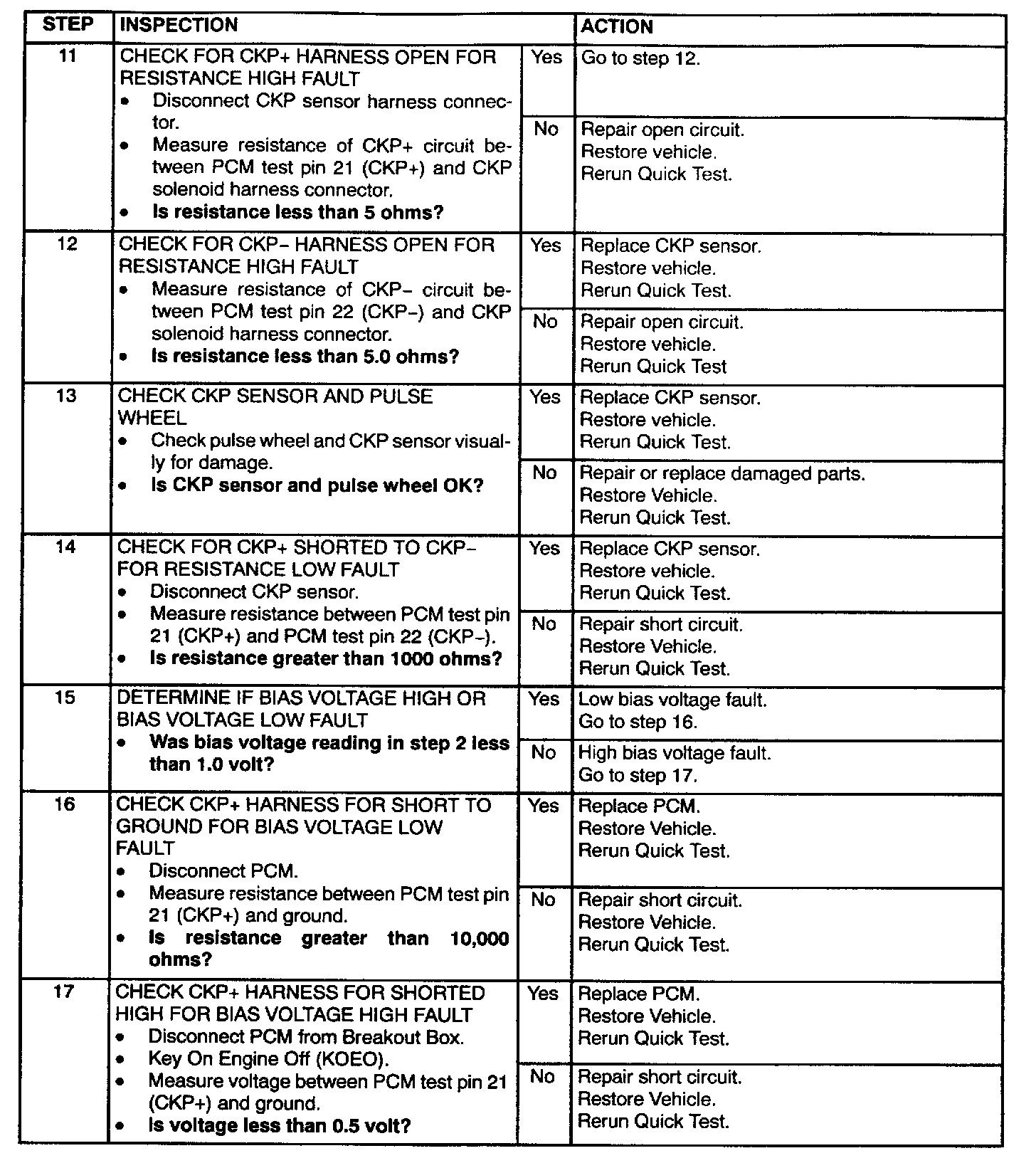

Part 3 of 3
