Locations
>>
Engine Control System
>>
B-2A
B-2A

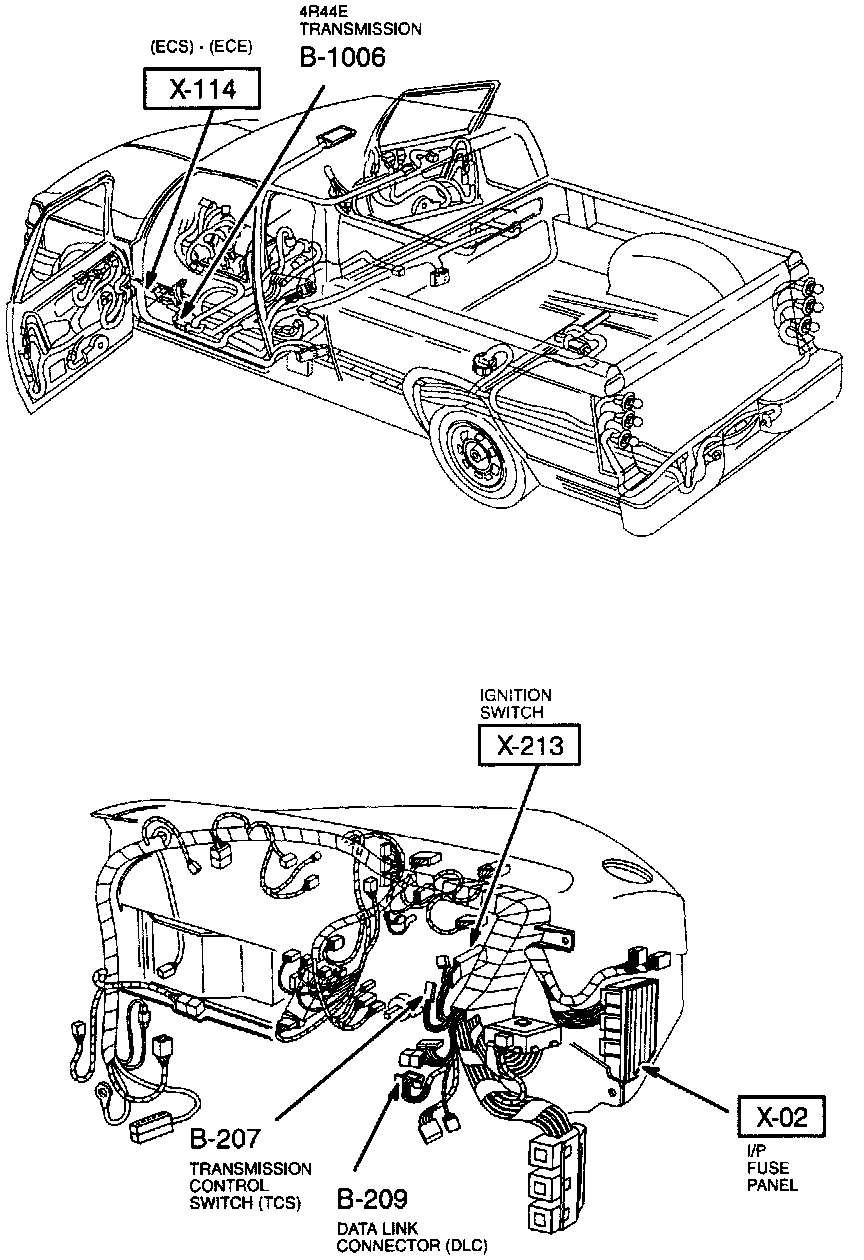

Connector Locations-Engine Compartment:
Connector Locations-Instrument Panel And Body:
