Malfunction Indicator Lamp: Testing and Inspection

TEST 3: MALFUNCTION INDICATOR LAMP

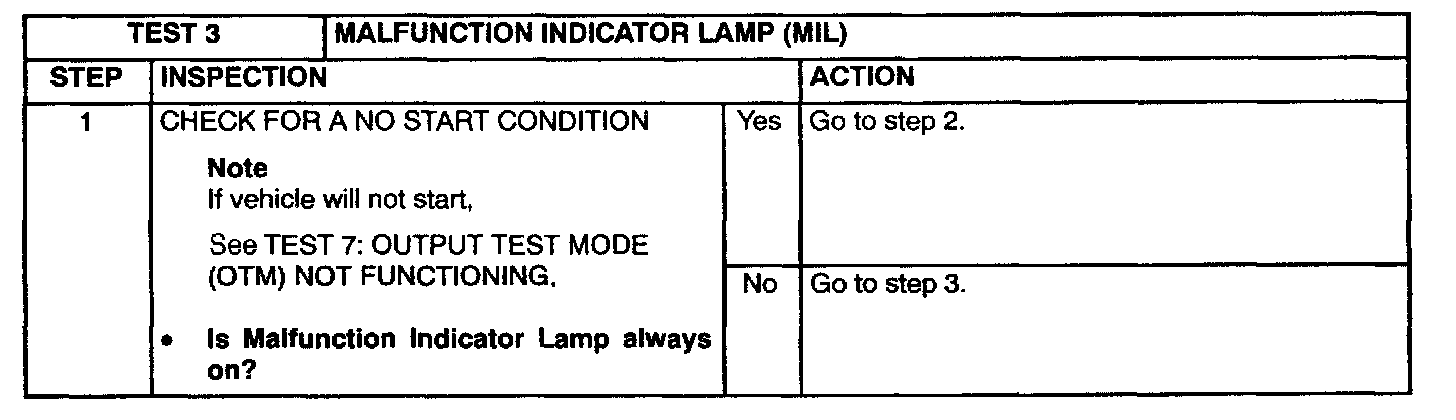

Part 1 of 2

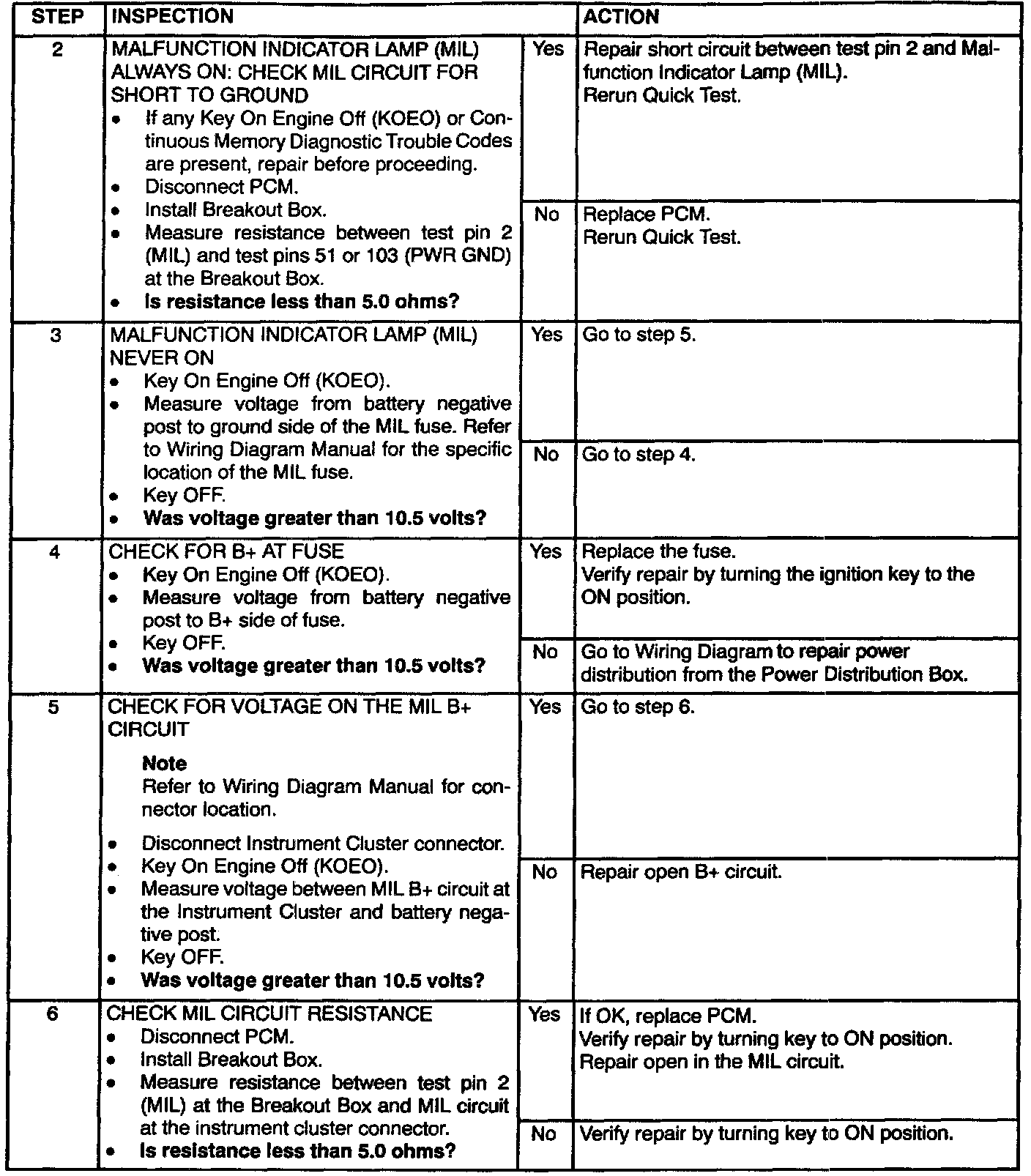

Part 2 of 2
