Pressure Feedback Exhaust Sensor: Service and Repair





1. Disconnect the battery ground cable.
2. Disconnect the electrical connector.

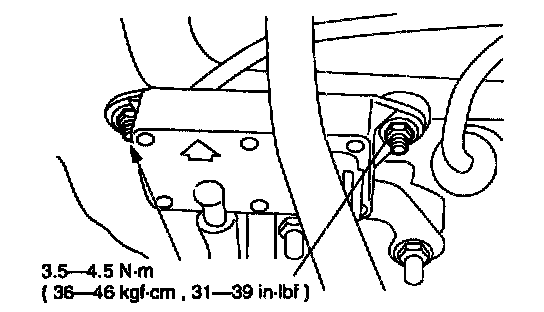

3. Remove the bolts.
4. Disconnect the two hoses and remove the DPFE sensor.
5. Install in reverse order of removal.
