Ignition System: Testing and Inspection

TEST 18: IGNITION SCOPE TEST

CAUTION: Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

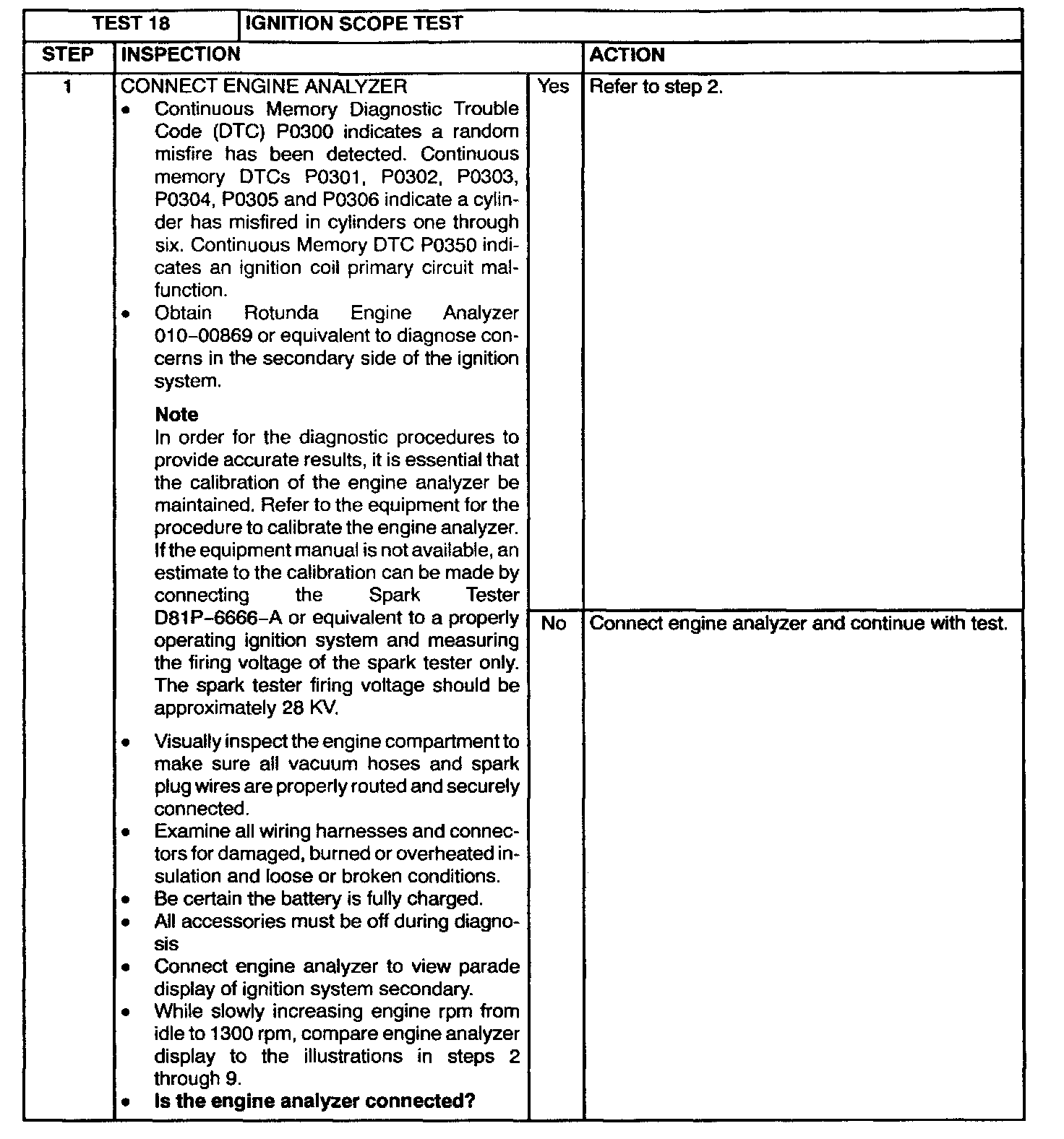

Part 1 of 4

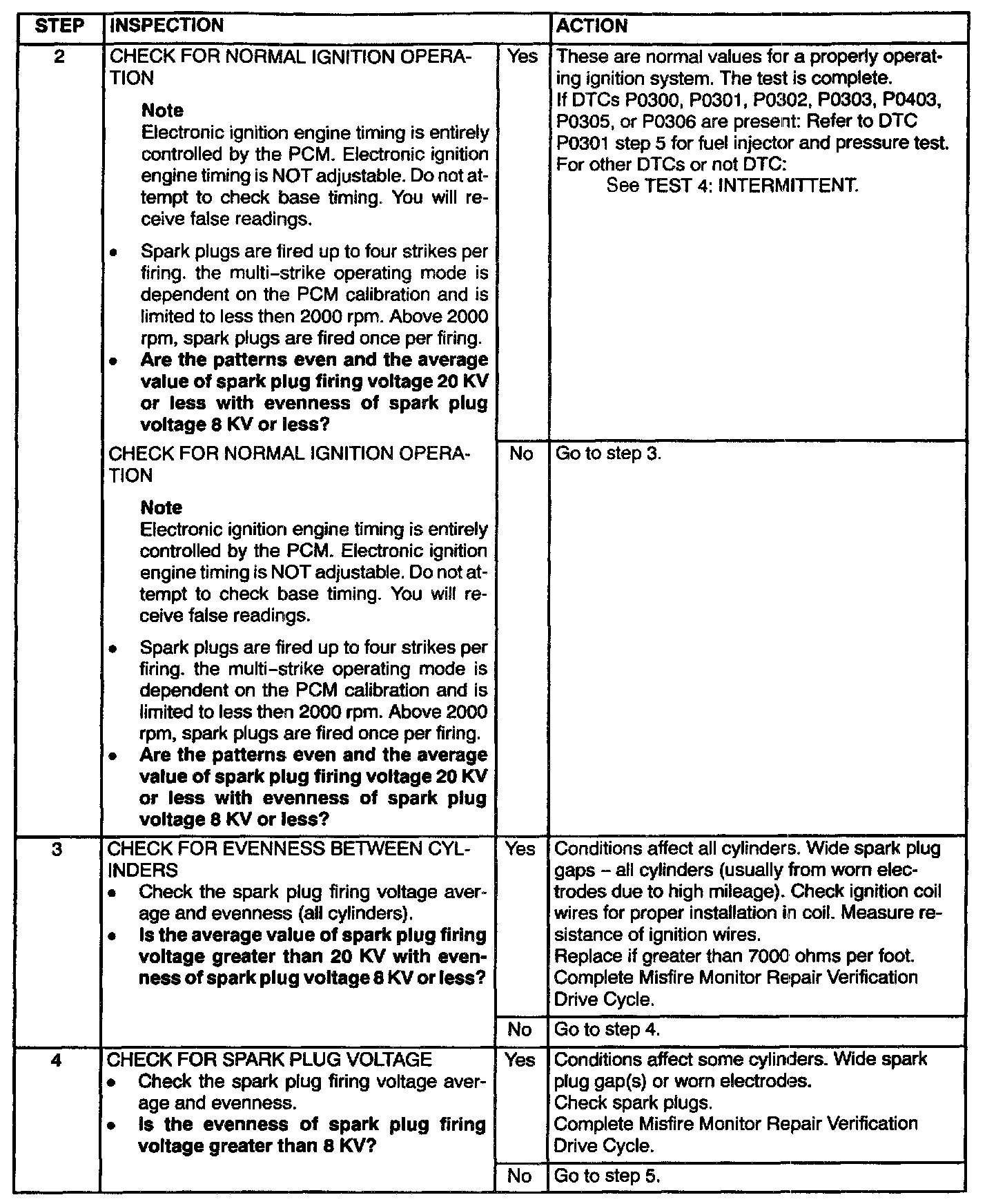

Part 2 of 4

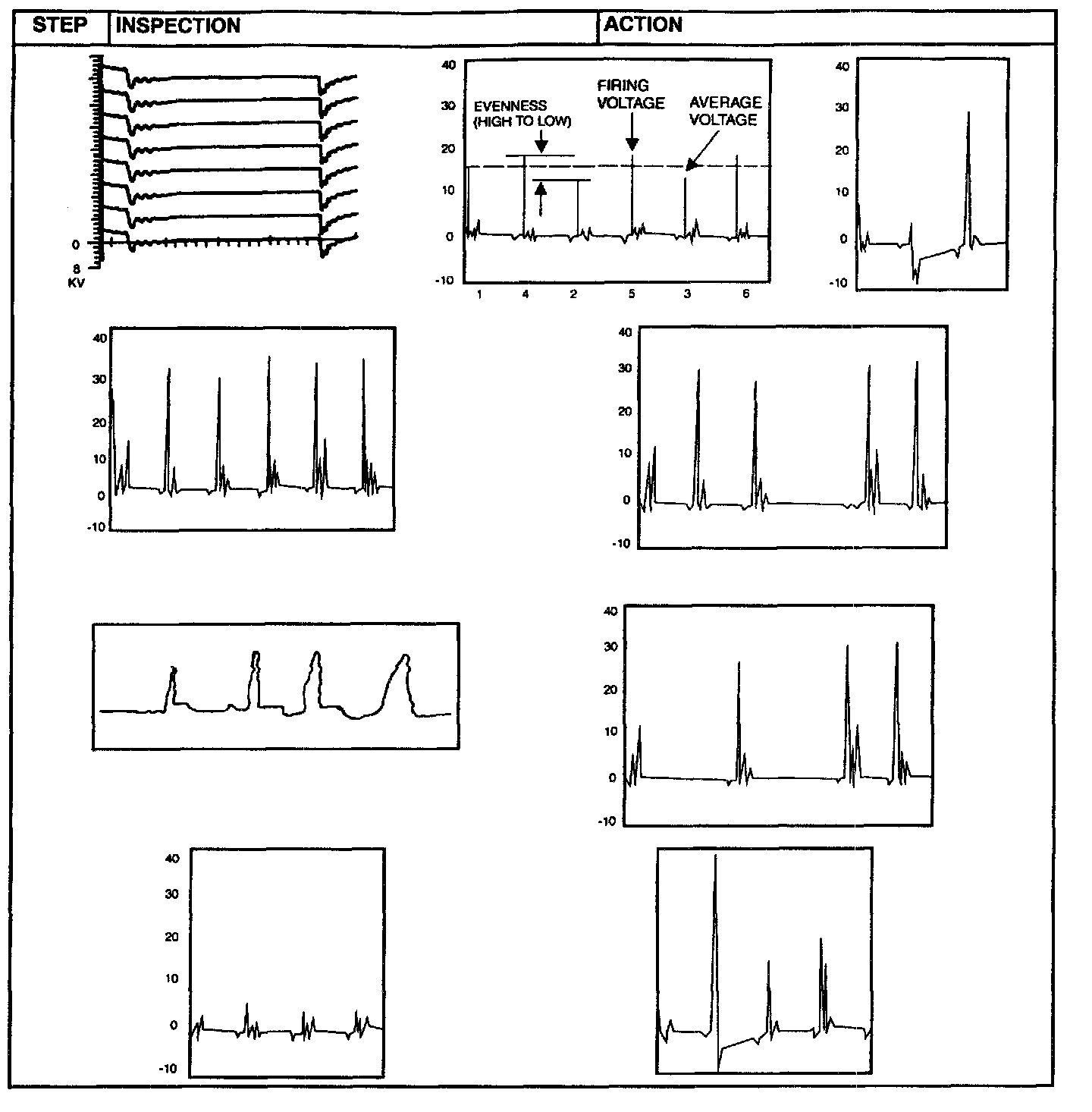

Part 3 of 4

Part 4 of 4

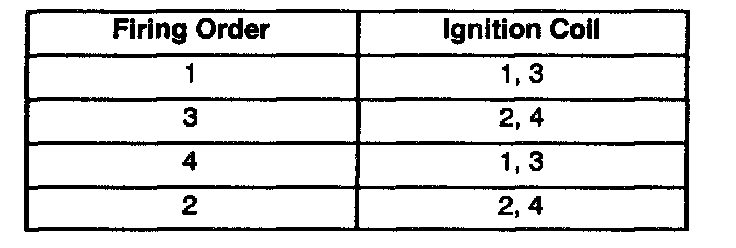

FIRING ORDER

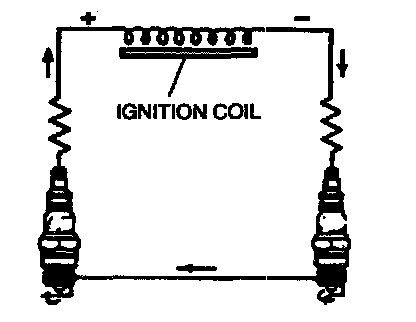

COIL OPERATION
