Control Module: Service and Repair

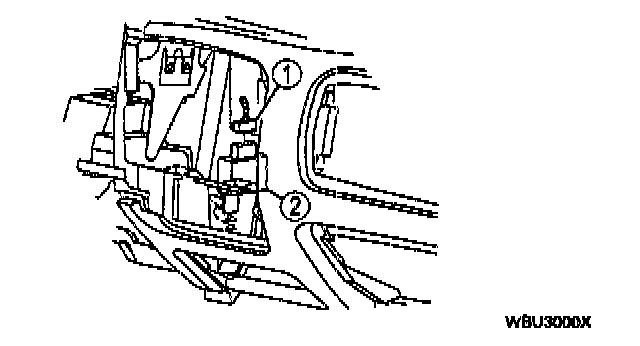

SHIFT CONTROL MODULE REMOVAL / INSTALLATION




1. Remove I/P center trim finish panel.
2. Remove module.
1) Disconnect connector.
2) Remove module.
3. Install in reverse order of removal.
