Home >> Mazda >> 1998 >> B2500 SE Cab Plus 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Powertrain Management >> System Specifications >> A/T

A/T

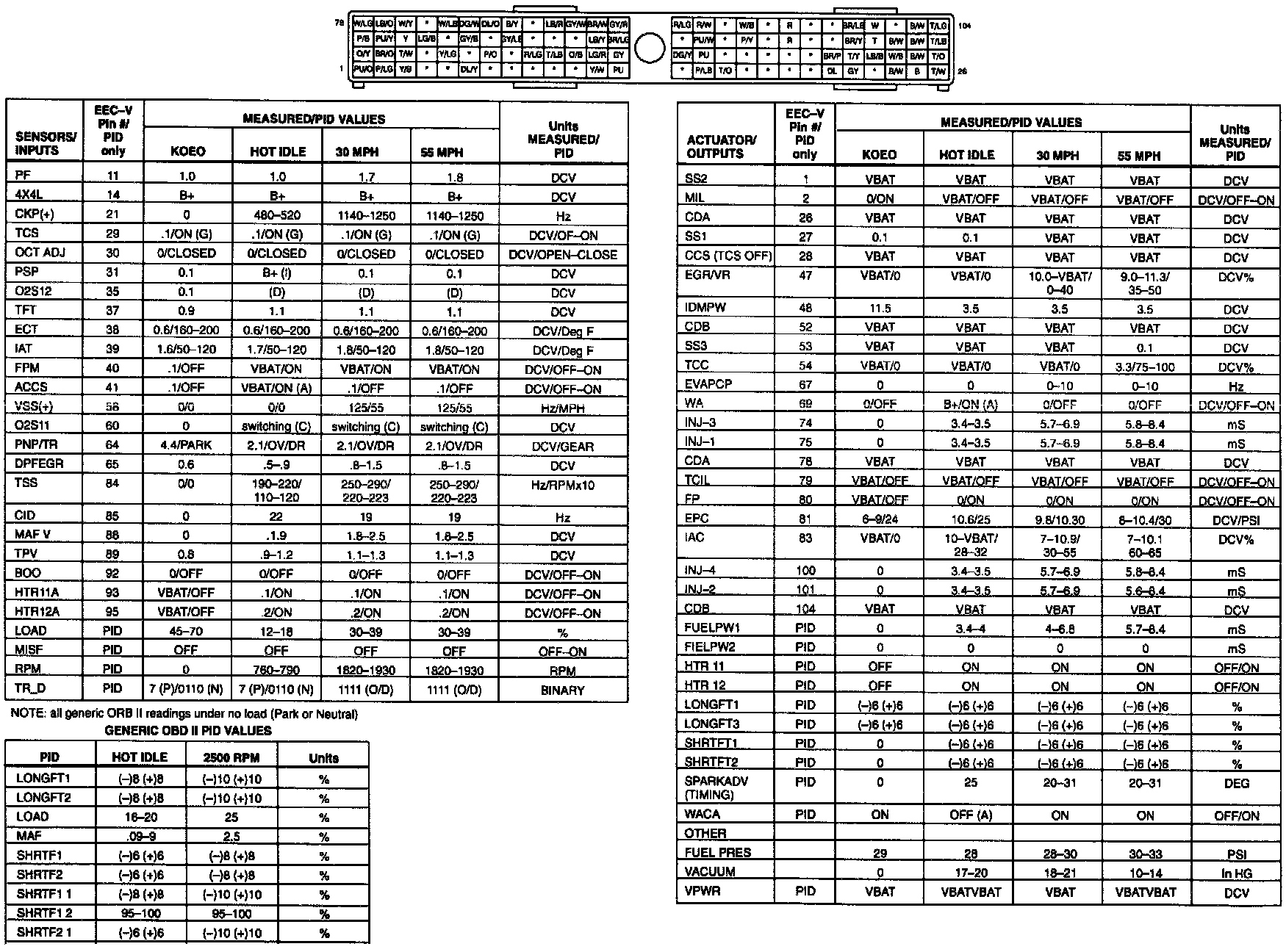

Powertrain Control Module Terminal (Unit Side):
