Axle Nut

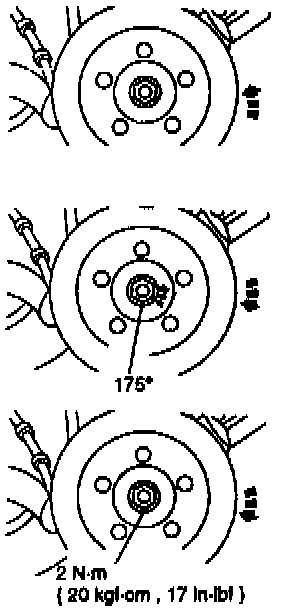

Hub and Rotor Installation Note (6)

NOTE: On 4x2 vehicles, the front disc brake hub and rotor should be rotated while adjusting front wheel bearing end play.

1. Tighten spindle nut.
2. Loosen the spindle nut 175°.





3. Tighten the spindle nut.

Tighten torque: 2 Nm (17 inch lbs.)
