Intake Manifold

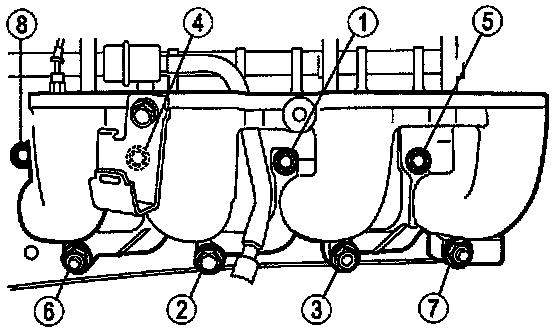

Torque the bolts in sequence, in two stages:
Torque to 7-10 Nm (45-89 in.lbs)
Torque to 26-38 Nm (19-28 ft.lbs)



Intake Torque Sequence:






Tighten the bolts in the sequence shown in two steps:
Tighten to 7 - 10 Nm (62 - 88 inch lbs.)
Tighten to 26 - 38 Nm (20 - 28 ft. lbs.)
