Ignition Switch: Service and Repair

1. Disconnect the battery ground cable.
2. Detach the hood latch release handle and position aside.
3. Remove the lower instrument panel steering column cover.
4. Remove the instrument panel steering column opening cover reinforcement.
5. Loosen the bolt and disconnect the electrical connector.

NOTE:
- The ignition key should be in the OFF position.

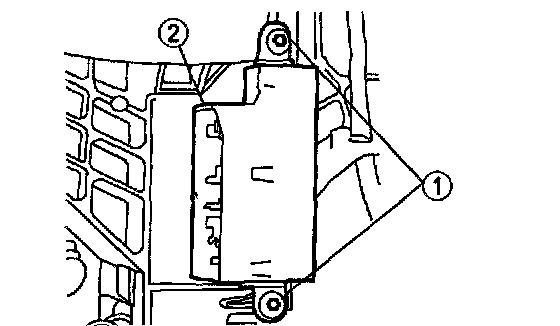

1. Remove the two screws
2. Remove the ignition switch.

6. Install in reverse order of removal.

Tightening torque: 5.3 - 7.2 N.m (54 - 73 kgf.cm , 47 - 64 in.lbf)
