Heater Control Unit

1. Remove the audio unit.




2. Remove the center trim finish panel.

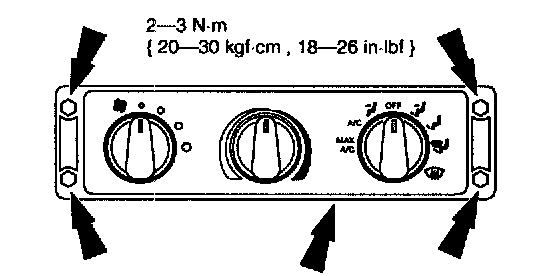

3. Remove the screws and remove the climate control assembly.

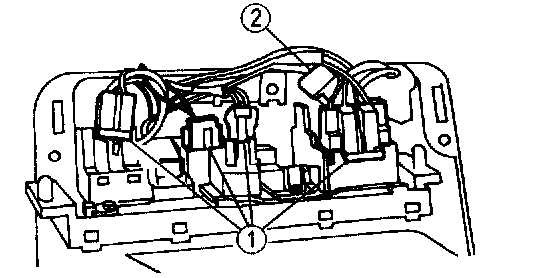

4. Disconnect the electrical connectors (1) and vacuum harness connector (2).
5. Install in reverse order of removal.
