Main Relay (Computer/Fuel System): Testing and Inspection

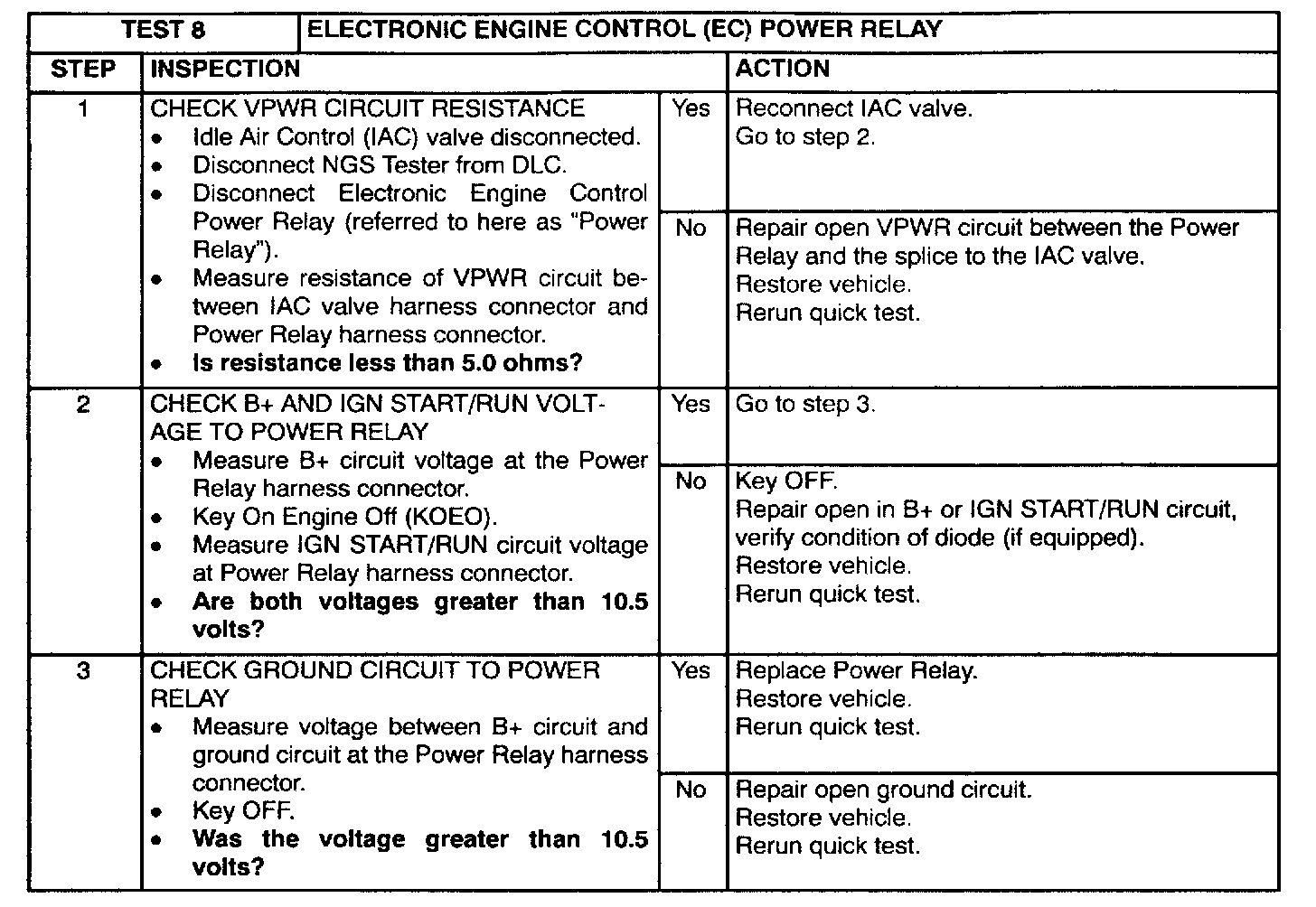

TEST 8: ELECTRONIC ENGINE CONTROL POWER RELAY
