Ignition System, Engine Control System
>>
B-1B
B-1B

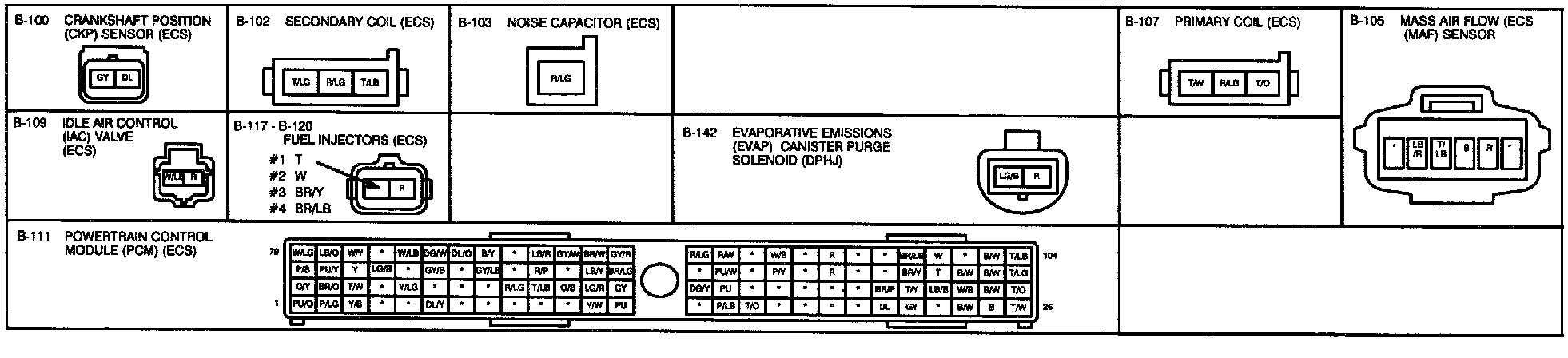

Ignition System, Engine Control System-Connectors:
