B2500 SX Regular Cab 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
>>
T-2
T-2

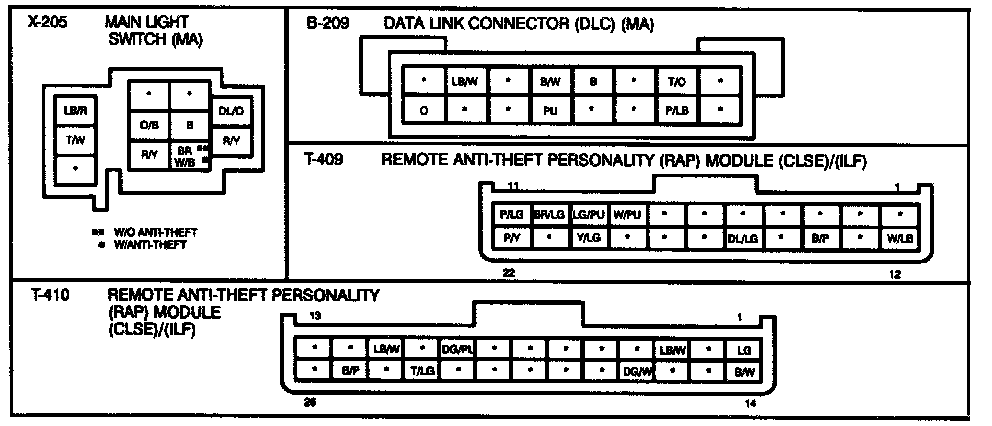

Remote Anti-Theft Personality (RAP) System-Connectors:
