Ignition System, Engine Control System
>>
B-4A
B-4A

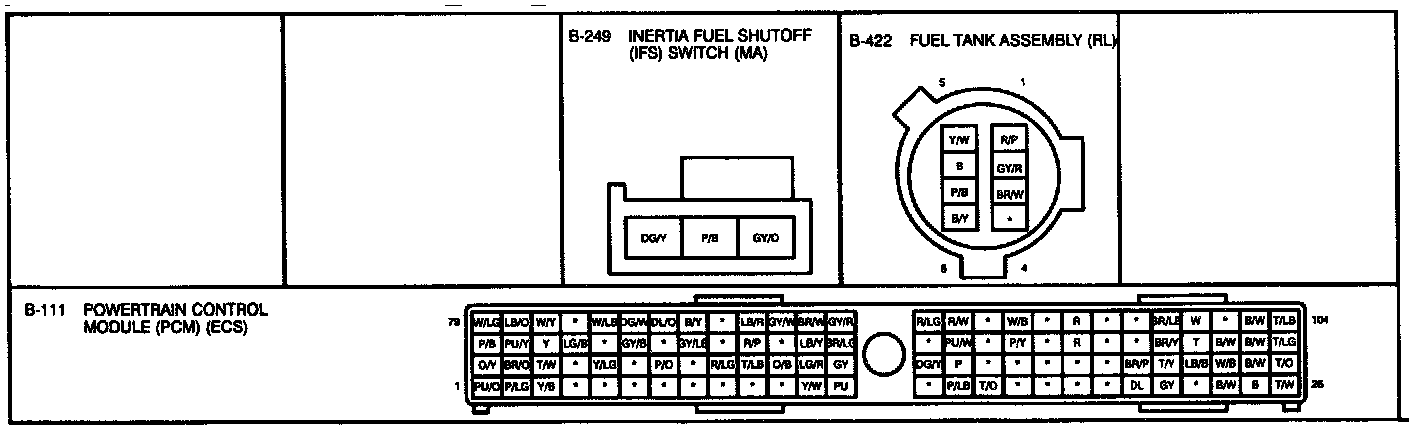

Ignition System, Engine Control System-Connectors:
