System Specifications

Oil Pump:

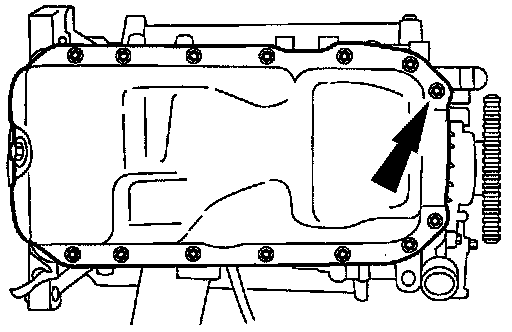

Tighten the oil pan bolts in four steps:
Tighten the four corner bolts to 10 - 14 Nm (89 - 123 inch lbs.).
Tighten the remaining bolts to 10 - 14 Nm (89 - 123 inch lbs.).
Loosen all the bolts one turn.
Tighten all the bolts to 10 - 14 Nm (89 - 123 inch lbs.).
