Pressure Feedback Exhaust Sensor: Service and Repair




1. Disconnect the battery ground cable.
2. Disconnect the electrical connector.
3. Disconnect the hoses.

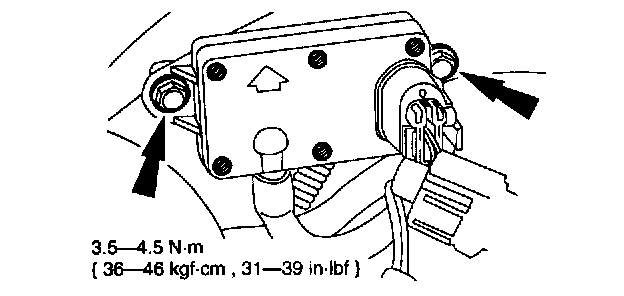

4. Remove the bolts and remove the DPFE sensor.
5. Install in reverse order of removal.
