Intake Manifold
Upper Intake Torque Sequence:
Tighten the lower intake bolts in sequence in four steps:
Torque to 2.5 Nm (22 in.lbs.)
Torque to 10 Nm (88 in.lbs.)
Torque to 13 Nm (110 in.lbs.)
Torque to 14-18 Nm (11-13 ft.lbs.)

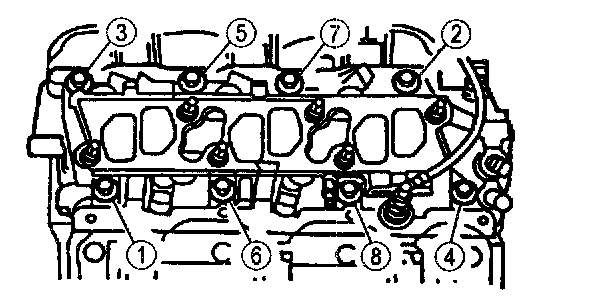

Tighten the lower intake bolts in sequence in four steps:
Torque to 2.5 Nm (22 in.lbs.)
Torque to 10 Nm (88 in.lbs.)
Torque to 13 Nm (110 in.lbs.)
Torque to 14-18 Nm (11-13 ft.lbs.)
