Electronic Brake Control Module: Testing and Inspection

1. Disconnect the ABS CM connector with the ignition switch at OFF.

CAUTION: Be careful not to damage the terminals during inspection.

2. Insert a thin isolation plate to the short bar of the connector

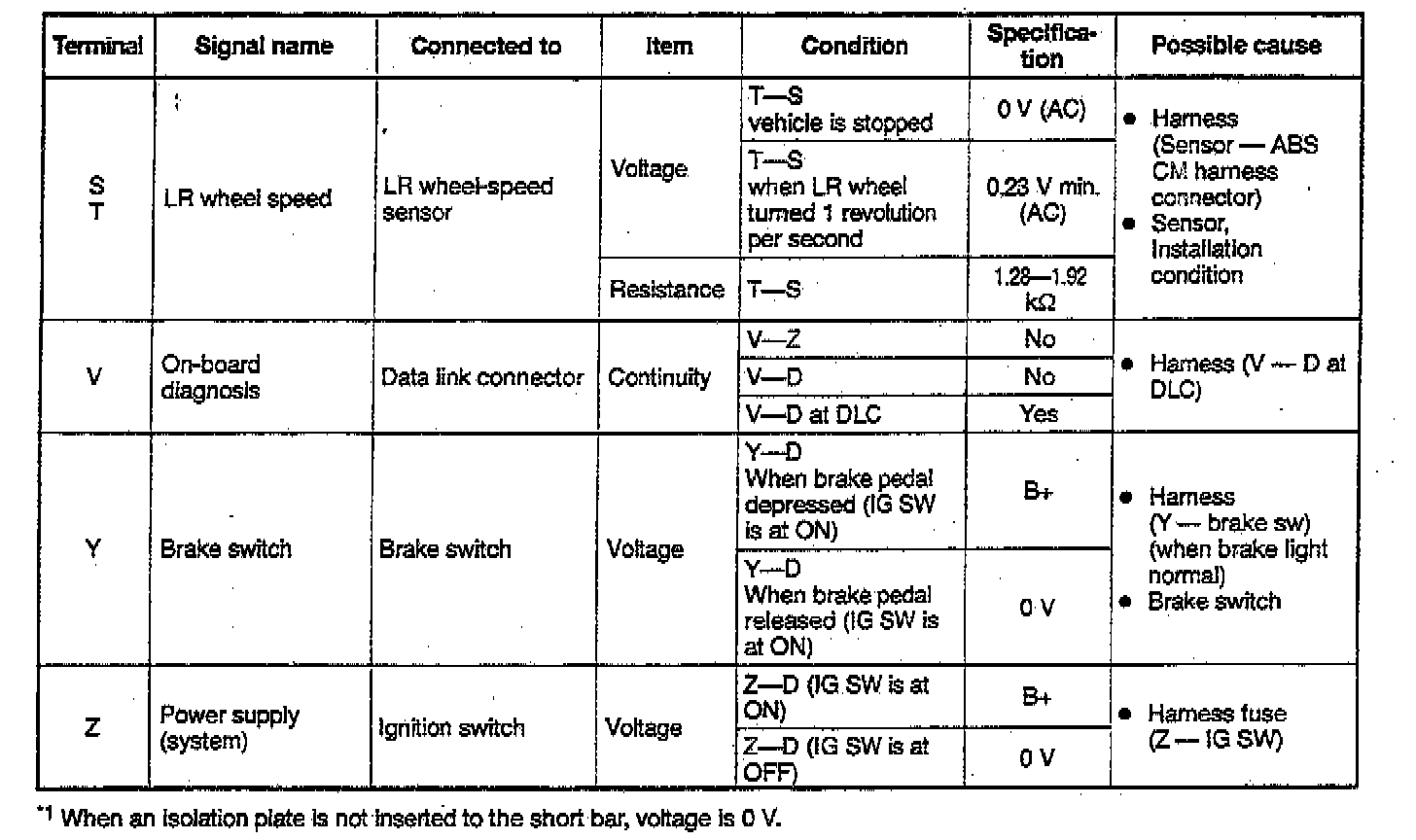

3. Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the following table.









SEE ALSO: Refer to Hydraulic Assembly testing procedures.
