Home >> Mazda >> 1998 >> MPV ES 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> CPU

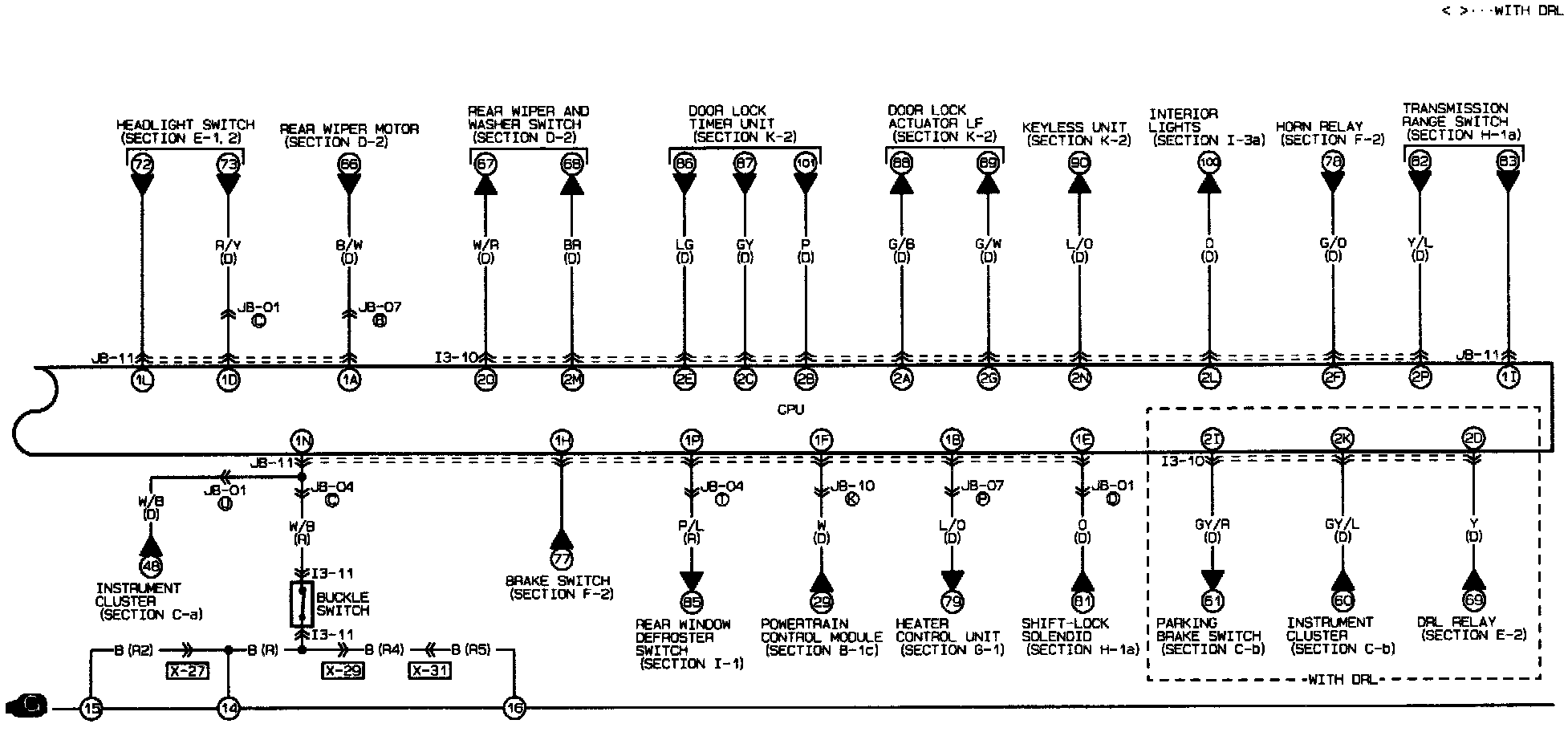

CPU

CPU:
