Crankshaft Position Sensor: Testing and Inspection

Resistance Test





1. Disconnect the crankshaft position sensor connector.
2. Measure the resistance between terminals A and B by using an ohmmeter.

Specification: 950 - 1250 Ohms [20°C { 68°F }]

3. If not as specified, replace the crankshaft position sensor.

Air Gap Test

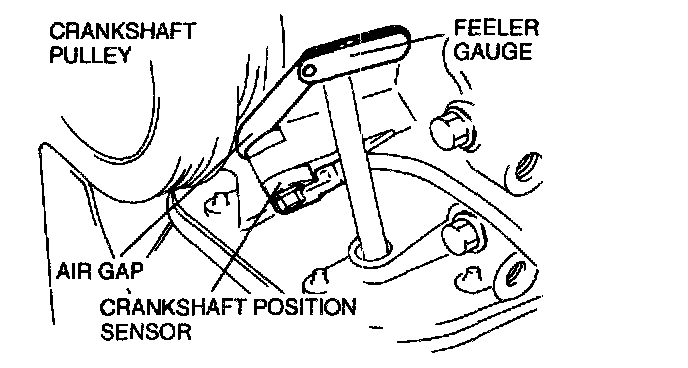

1. Measure the air gap between crankshaft pulley and crankshaft position sensor by using a feeler gauge.





Specification 0.5-1.5 mm (0.020-0.059 in)

2. If not as specified, replace the crankshaft pulley or the crankshaft position sensor.
