Idle Air Control Valve Inspection

1. Verify that the ignition switch is OFF.
2. Disconnect the idle air control valve connector.

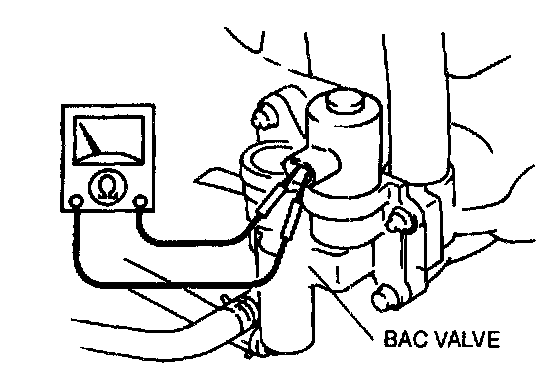

3. Measure the resistance of the idle air control valve by using an ohmmeter.

Specification
10.7-12.3 ohms[20°C { 68°F)]

4. If not within the specification, replace the BAC valve.
