Crankshaft

CRANKSHAFT RUNOUT 0.03 mm {0.0012 inch} maximum

NOTES:

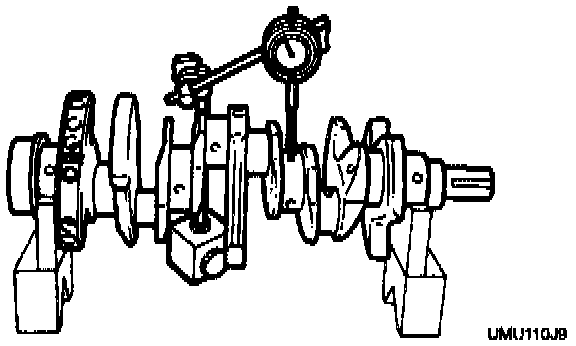

- Set the crankshaft on V-blocks.
- Measure the crankshaft runout at the center journal. Replace if necessary.

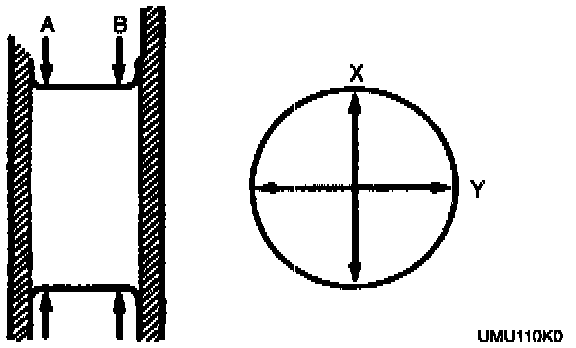

NOTE: Measure each journal diameter in X and Y directions at two points as shown in the accompanying image.

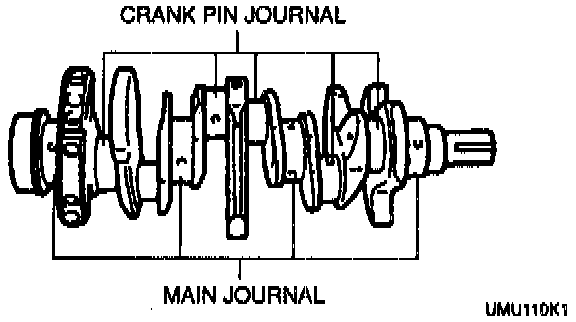

MAIN JOURNAL
Diameter 61.937 - 61.955 mm {2.4385 - 2.4391 inch}
Out-of-round 0.05 mm {0.0020 inch} maximum
CRANKPIN JOURNAL:
Diameter 52.940 - 52.955 mm {2.0843 - 2.0848 inch}
Out-of-round 0.05 mm {0.0020 inch} maximum

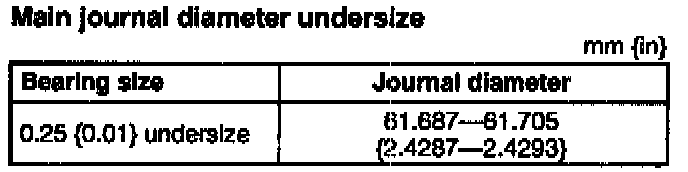

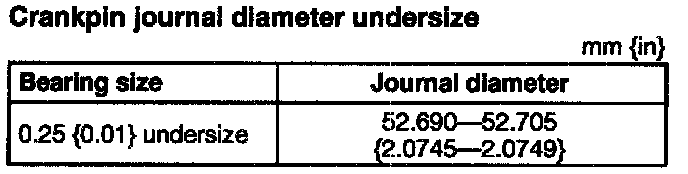

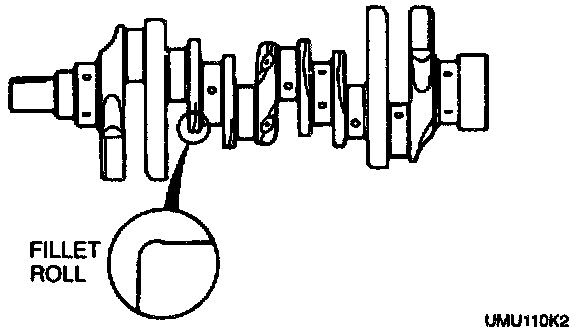

NOTE: If the diameter is less than the specification, grind the journals to match an undersize bearing.

UNDERSIZE BEARING 0.25 mm {0.01 inch}





Crankshaft

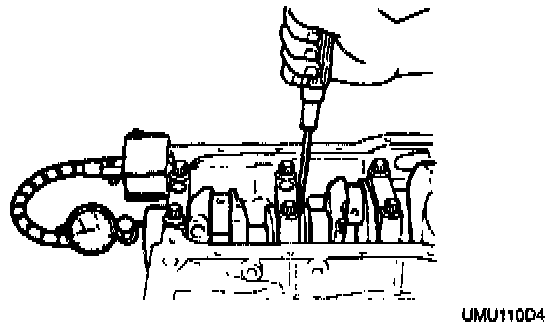

End play 0.080 - 0.282 mm {0.0032 - 0.0111 inch}
Maximum 0.30 mm {0.0188 inch}




NOTE: If the end play exceeds the maximum, grind the crankshaft and install an oversize thrust bearing or replace the crankshaft and thrust bearing.

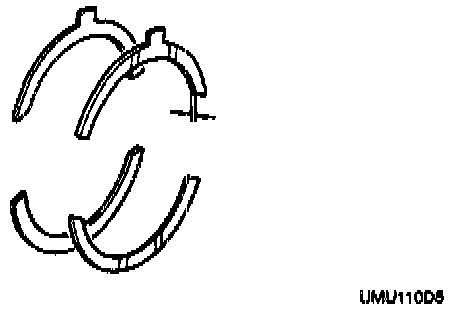

Thrust bearing width:
Standard:
2.000 - 2.050 mm {0.0799 - 0.0807 inch}
0.25 mm {0.01 inch} oversize:
0.50 mm {0.0188 inch}
