Valve Spring

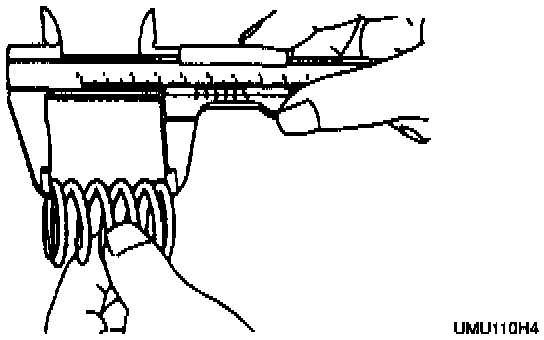

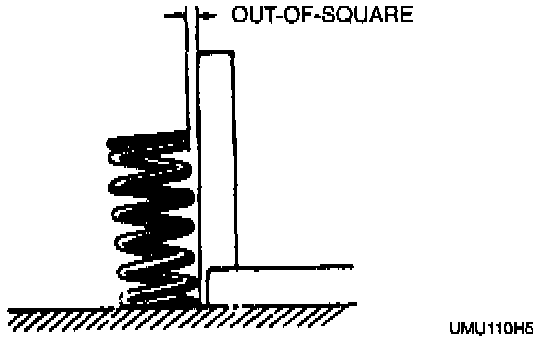

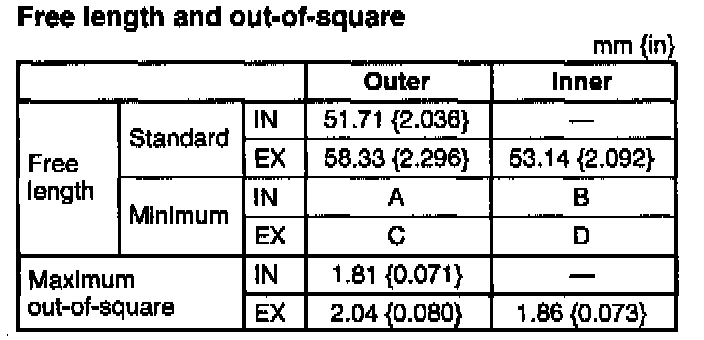

VALVE SPRING FREE LENGTH AND OUT-OF-SQUARE
A
44.0 {1.732}
with a set load of
138 - 147 {14.0 - 15.05, 31 - 33}
B
39.5 {1.555}
with a set load of
93 - 99 {9.4 - 10.11, 21 - 22}
C
45.0 {1.772}
with a set load of
232 - 261 {23.56 - 26.66, 52 - 58}
D
40.5 {1.594}
with a set load of
148 - 166 {15.01 - 16.99, 33 - 37}
