Torque Specifications
Oil PanBolts 6.9 - 9.8 Nm {70 - 100 kgf/cm, 61 - 86 inch lbs.}
CAUTION: If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause thread damage.

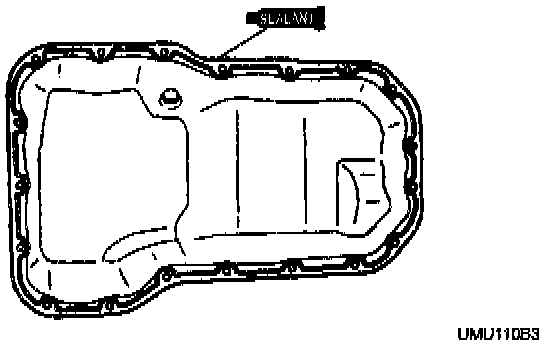

NOTE: Apply silicone sealant to the oil pan along the inside of the bolt holes, overlap the ends, and install the oil pan within five minutes.
