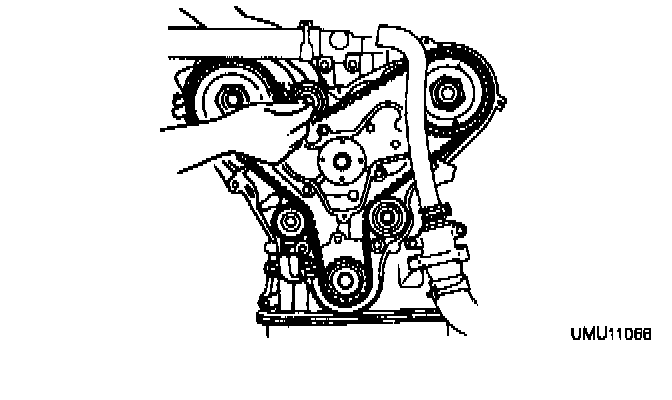

Timing Belt
Upper Idler
Pulley 38 - 51 Nm {3.8 - 5.3 kgf/m, 28 - 38 ft. lbs.}
At 60,000 miles inspect the tensioner pulley & replace as necessary. A worn inner bushing may allow the pulley to slant resulting in a torn or jumped timing belt.
Upper Idler
Pulley 38 - 51 Nm {3.8 - 5.3 kgf/m, 28 - 38 ft. lbs.}
At 60,000 miles inspect the tensioner pulley & replace as necessary. A worn inner bushing may allow the pulley to slant resulting in a torn or jumped timing belt.
