Timing Cover

Timing Belt Cover Bolts
M6 7.9 - 10.7 Nm {80 - 110 kgf/cm, 70 - 95 inch lbs.}
M10 38 - 52 Nm {3.8 - 5.3 kgf/m, 28 - 38 ft. lbs.}

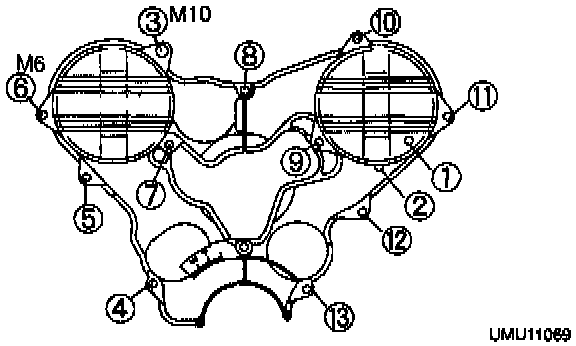

NOTE: Tighten the bolts in the order shown. Use new gaskets.
