Battery: Testing and Inspection

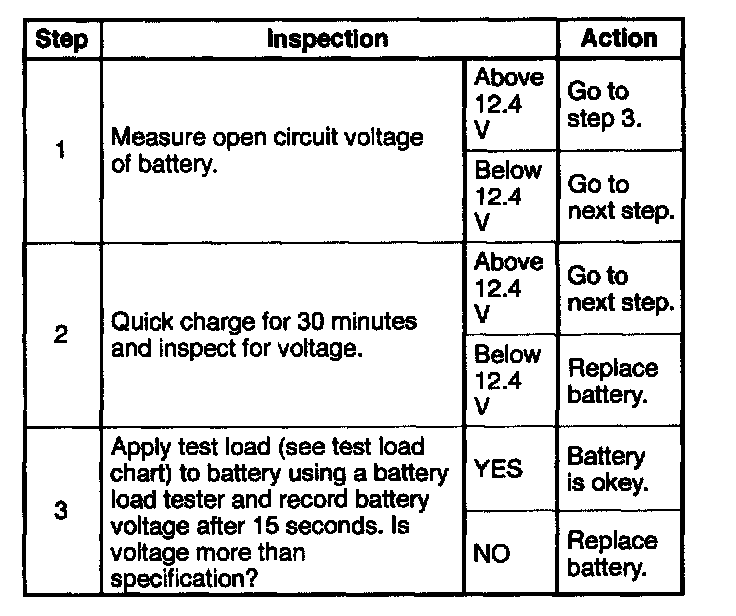

Inspect the battery in the following procedure.

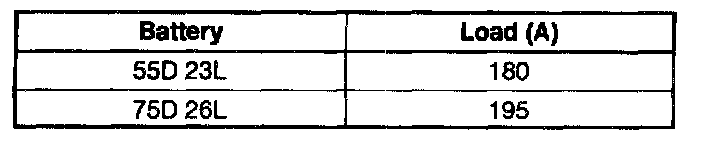

Test load chart

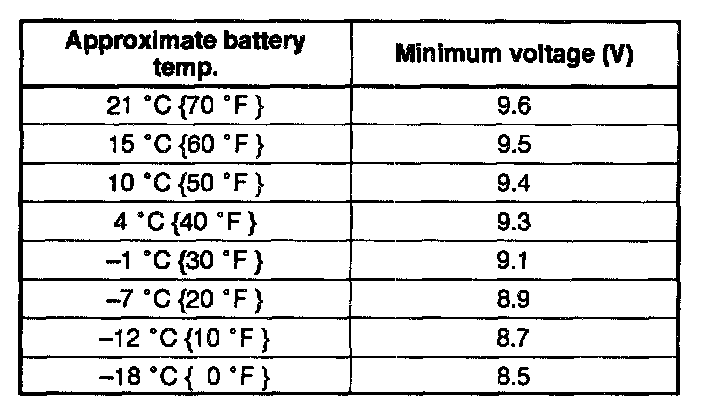

Battery positive voltage with load

Dark Current
1. Verify that the ignition switch is at OFF position.
2. Disconnect the negative battery cable.

CAUTION:
^ Operating electrical loads while measuring the dark current can damage the circuit tester.

3. Measure the dark current between the negative battery terminal and the negative battery cable.
Dark current 20 mA max.
4. If the current exceeds the maximum, remove the fuse in the main fuse block and the fuse block one by one while measuring the dark current.
5. Inspect and repair harnesses and connectors of the fuse at which the current reduces.
