Home
>>
Mazda
>>
1998
>>
MPV ES 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Disassembly and Assembly

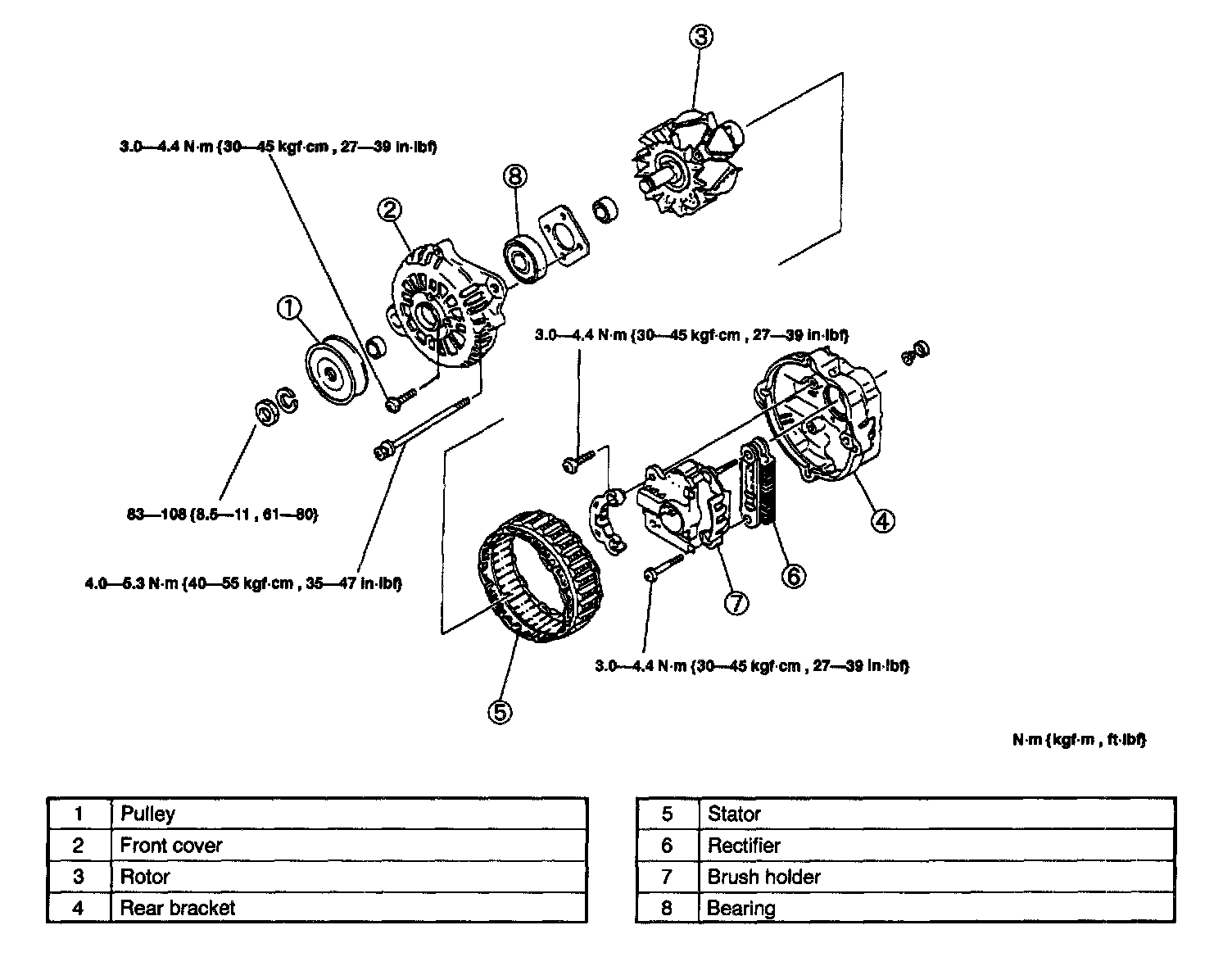

Disassembly and Assembly
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
