Power Window Main Switch

1. Remove the switch panel.
2. Turn the ignition switch to ON.

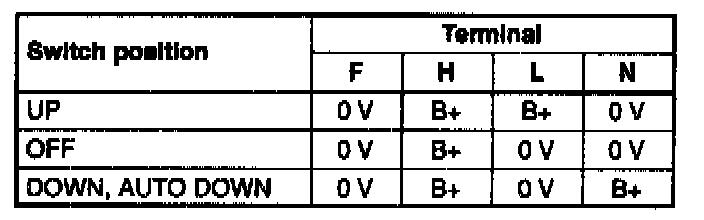

3. Measure the voltage at the power window main switch terminals by using a voltmeter.
4. Remove the power window main switch.

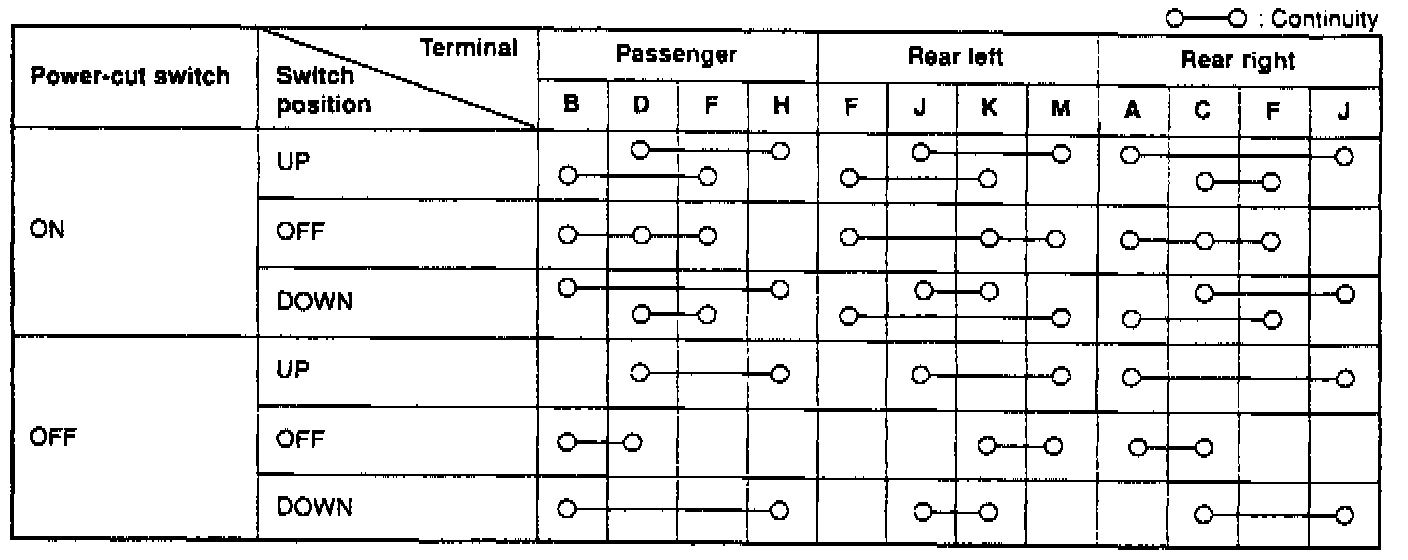

5. Check for continuity between the power window main switch terminals by using an ohmmeter.




6. If not as specified, replace the power window main switch.
