Disassembly/Assembly
Disassembly/Assembly
1.

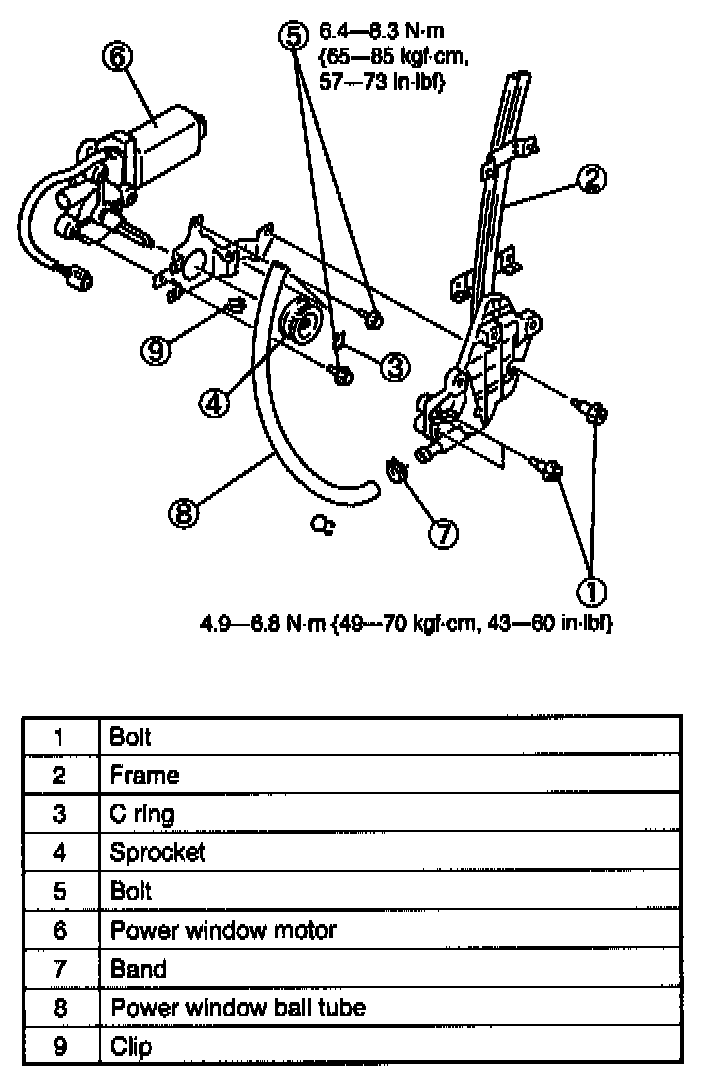

Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
3.
Raise and lower the window at least 10 times and verify that it is operating normally and not making any abnormal noises.
