Window Track: Service and Repair

1. Raise the door glass 85 mm {3.35 in} from the fully lowered position.
2. Disconnect the negative battery cable.
3. Remove the rear door trim.

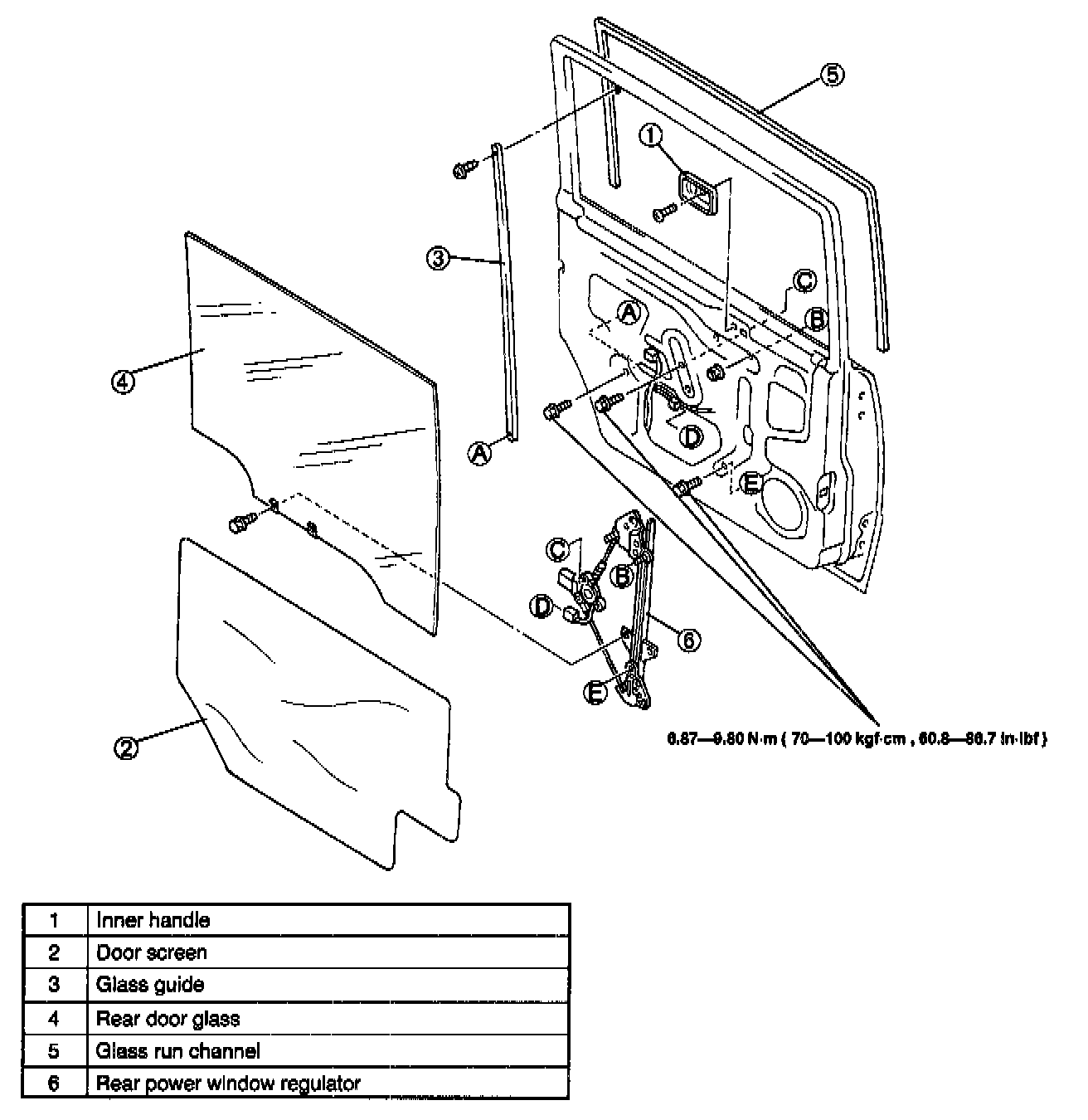

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Install the rear door trim.
7. Connect the negative battery cable.

Glass Guide Installation Note
1. Install the glass guide installation screw.

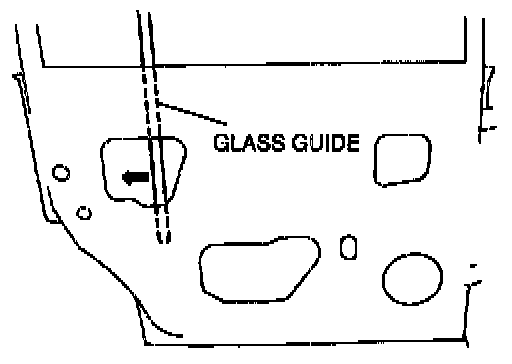

2. Move the glass guide in the direction shown in the figure, then install the bolt.
