Fuel Filter: Service and Repair





1. Disconnect the fuel hoses from the fuel filter.

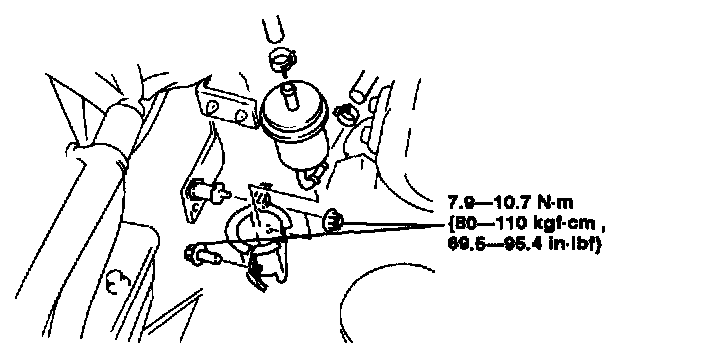

2. Remove and install the fuel filter as shown.
3. Verify that the fuel hoses are pushed fully onto the fuel filter nipples.
