Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1998
>>
MPV ES 4WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
Ignition System, Powertrain Control System
Ignition System, Powertrain Control System

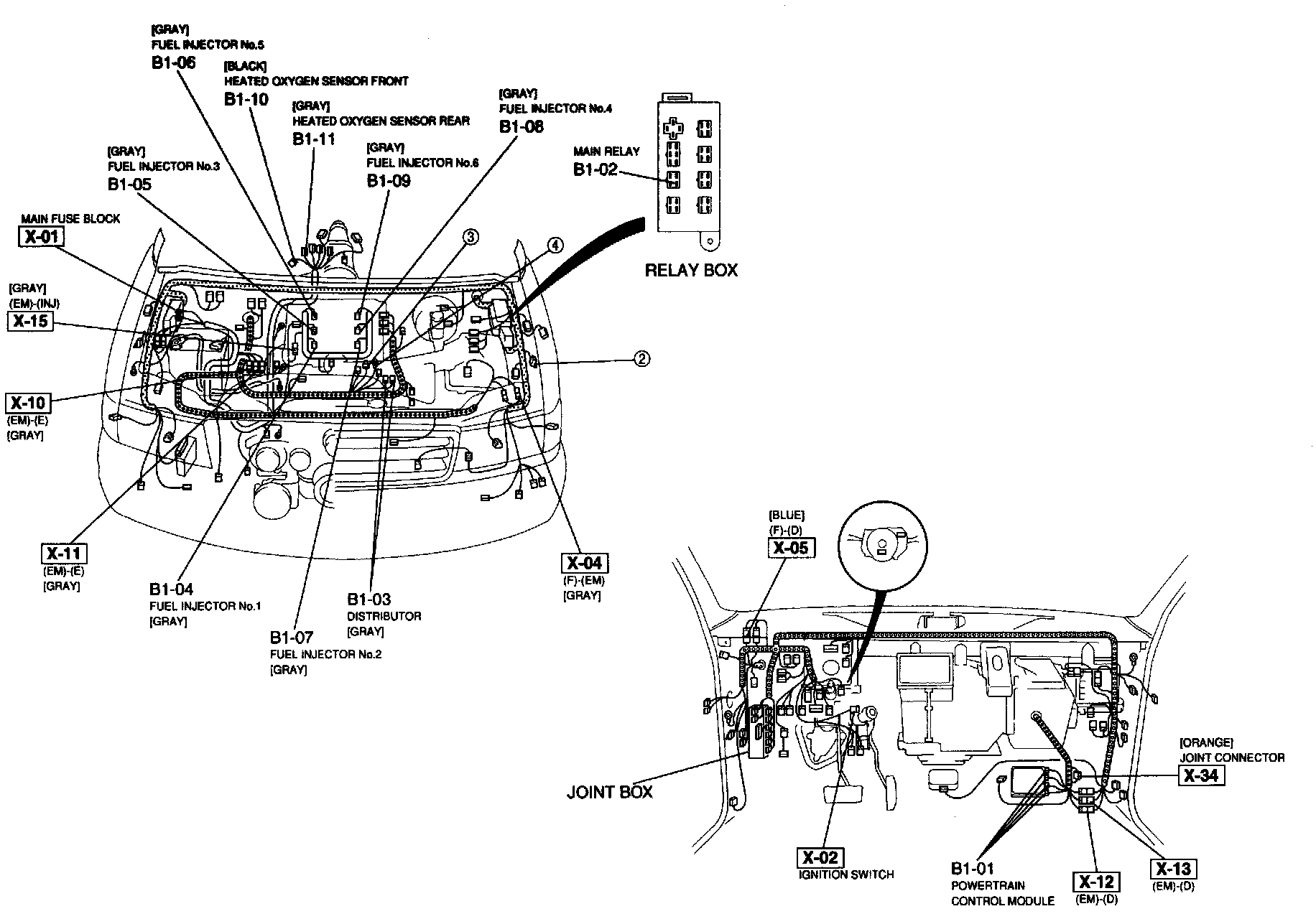

Connector Locations:
